Removal

2TR-FE ENGINE CONTROL: CRANKSHAFT POSITION SENSOR: REMOVAL

1. REMOVE FAN SHROUD

(a) Remove the fan shroud Removal.

2. DISCONNECT VANE PUMP ASSEMBLY Removal

3. DISCONNECT COOLER COMPRESSOR ASSEMBLY Removal

4. REMOVE NO. 1 COMPRESSOR MOUNTING BRACKET Removal

5. REMOVE CRANKSHAFT POSITION SENSOR

(a) Disconnect the crankshaft position sensor connector and detach the wire harness clamp.

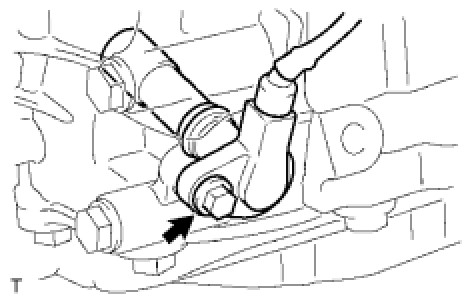

(b) Remove the bolt and crankshaft position sensor.
