Removal
A343E AUTOMATIC TRANSMISSION / TRANSAXLE: ATF TEMPERATURE SENSOR: REMOVAL 1.

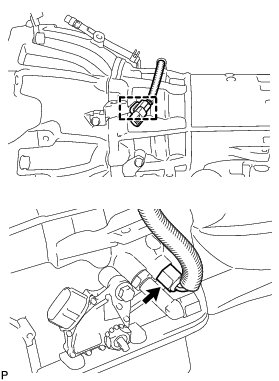

REMOVE NO. 2 ATF TEMPERATURE SENSOR
(a)
Disconnect the temperature sensor connector.
(b)
Detach the sensor connector clamp from the connector stay.
(c)
Remove the temperature sensor.
