Transmission Temperature Sensor/Switch: Testing and Inspection





A343E AUTOMATIC TRANSMISSION / TRANSAXLE: ATF TEMPERATURE SENSOR: INSPECTION

1. INSPECT NO. 2 ATF TEMPERATURE SENSOR

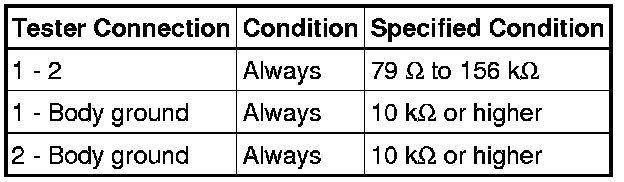

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration





HINT

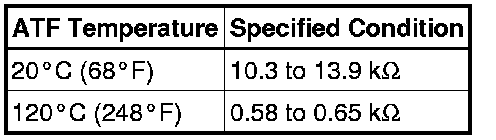

If the resistance is out of the specified range at either of the ATF temperatures shown in the table below, the driveability of the vehicle may decrease.

Standard Resistance:





If the result is not as specified, replace the No. 2 ATF temperature sensor.
