Inner Rear View Mirror Power Source Circuit (from 12/2010)





PARK ASSIST / MONITORING: REAR VIEW MONITOR SYSTEM (w/o Navigation System): Inner Rear View Mirror Power Source Circuit
- Inner Rear View Mirror Power Source Circuit

DESCRIPTION

This circuit detects the state of the ignition switch, and sends it to the inner rear view mirror assembly.

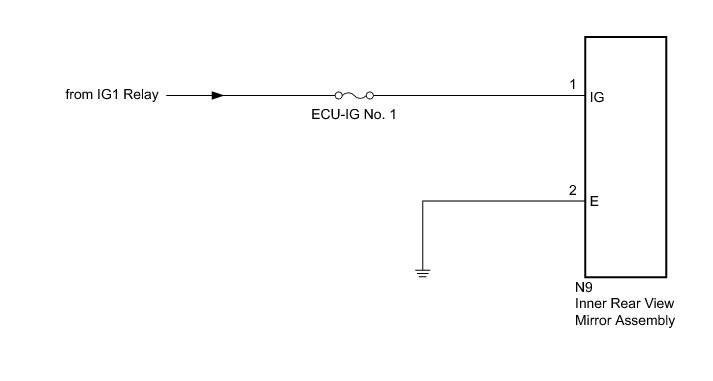

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
Inspect the fuses for circuits related to this system before performing the following inspection procedure.

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (BATTERY - INNER REAR VIEW MIRROR ASSEMBLY)

(a) Disconnect the N9 connector from the inner rear view mirror assembly.

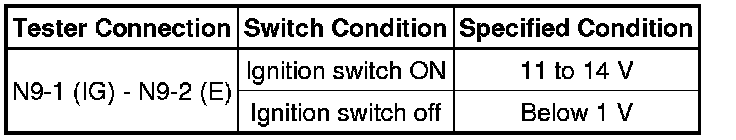

(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Problem Symptoms Table (from 12/2010)
