Removal (to 12/2010)
SUPPLEMENTAL RESTRAINT SYSTEM: OCCUPANT CLASSIFICATION ECU: REMOVAL
1. PRECAUTION
CAUTION:
Be sure to read the "PRECAUTION" thoroughly before servicing Occupant Classification System.
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait for 90 seconds after disconnecting the cable to prevent the airbag working.
3. REMOVE FRONT RH SEAT ASSEMBLY Removal (to 12/2010)

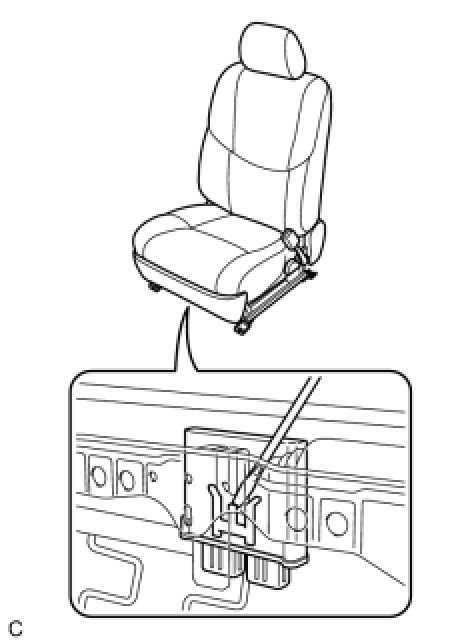

4. REMOVE OCCUPANT CLASSIFICATION ECU
(a) Disconnect the 2 connectors from the occupant classification ECU.
(b) Using a screwdriver, remove the occupant classification ECU.
