Alignment

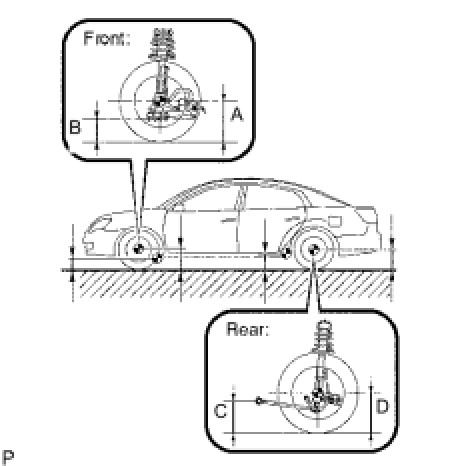

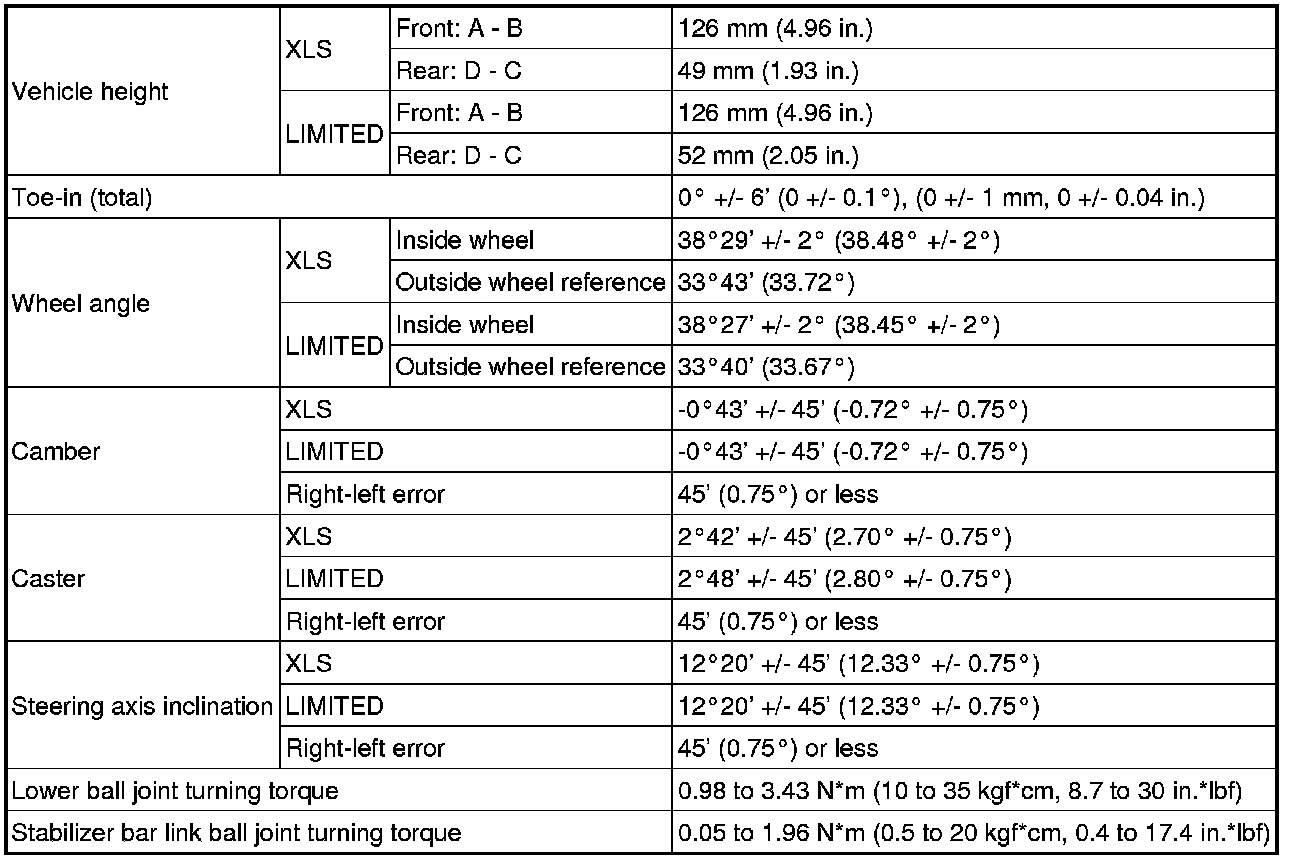

SERVICE SPECIFICATIONS: SUSPENSION: SERVICE DATAFront Measurement points: *
A: Ground clearance of front wheel center
*
B: Ground clearance of lower suspension arm No. 2 set bolt head center
*
C: Ground clearance of strut rod set bolt center
*
D: Ground clearance of rear wheel center

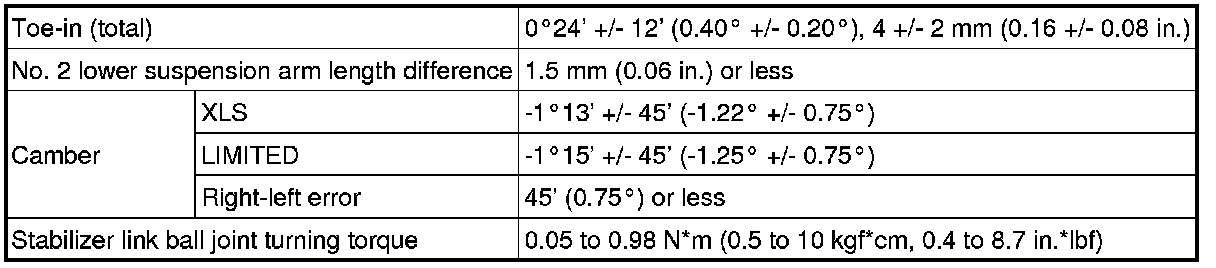

Measure the vehicle heightRear
