Cylinder Head Assembly

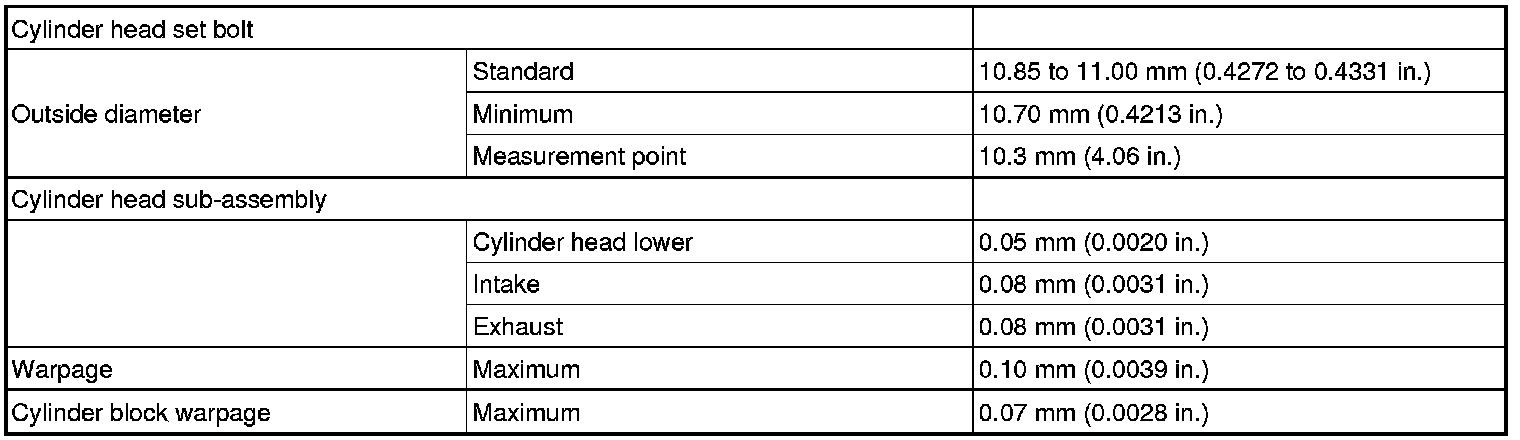

CYLINDER HEAD SUB-ASSEMBLY RH

The cylinder head bolts are tightened in 3 progressive steps.

Step 1

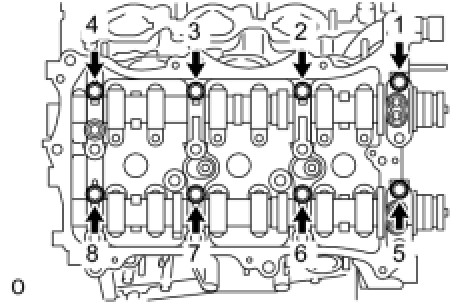

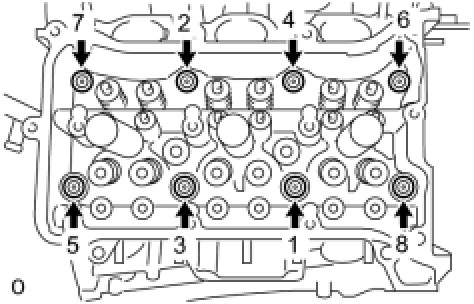

Using a 10 mm bi-hexagon wrench, install and uniformly tighten the 8 cylinder head bolts with the plate washers in several steps and in the sequence shown in the illustration.

Torque 36 Nm (367 kgf-cm, 27 ft-lbf)

Step 2

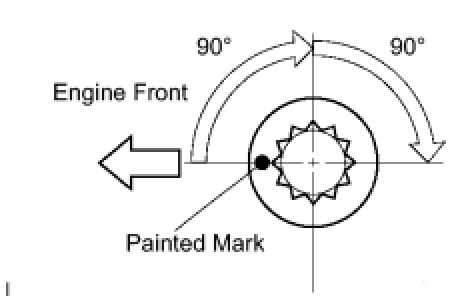

Mark the cylinder head bolt head with paint as shown in the illustration.
Tighten the cylinder head bolts another 90°.

Step 3

Tighten the cylinder head bolts by an additional 90°.
Check that the painted mark is now facing rearward.

CYLINDER HEAD SUB-ASSEMBLY LH

the cylinder head bolts are tightened in 3 progressive steps.

Step 1

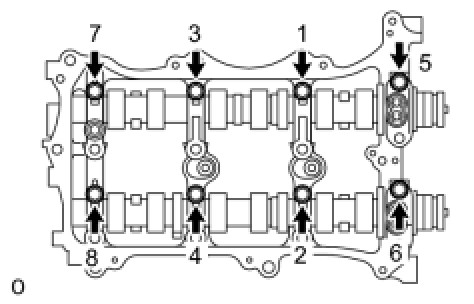

Using a 10 mm bi-hexagon wrench, install and uniformly tighten the 8 cylinder head bolts with the plate washers in several steps in the sequence shown in the illustration.

Torque 36 Nm (367 kgf-cm, 27 ft-lbf)

Step 2

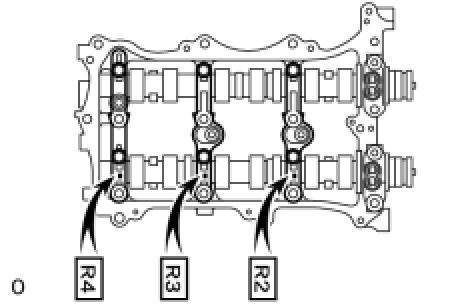

CAMSHAFT BEARING CAP RH

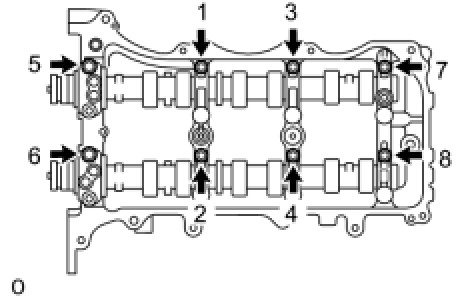

Temporarily tighten the 8 bolts in the order shown in the illustration.

Torque 10 Nm (102 kgf-cm, 7 ft-lbf)

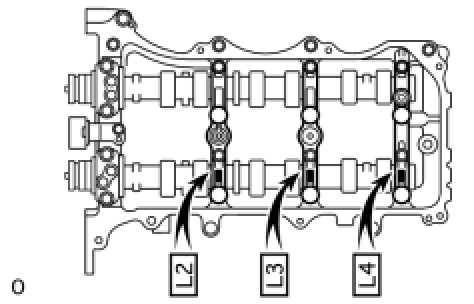

CAMSHAFT BEARING CAP

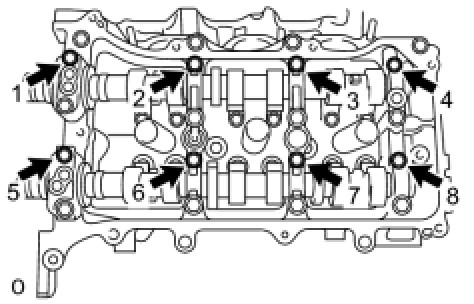

Temporarily tighten the 8 bolts in the order shown in the illustration.

Torque 10 Nm (102 kgf-cm, 7 ft-lbf)

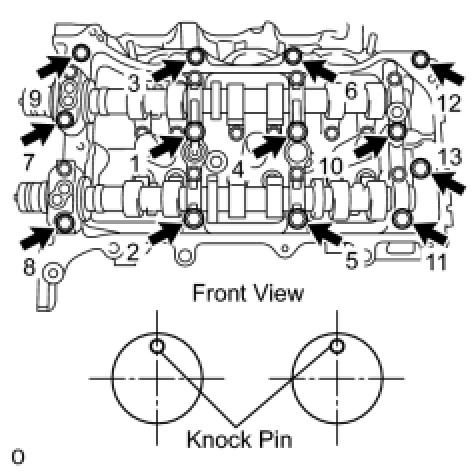

CAMSHAFT HOUSING SUB-ASSEMBLY LH

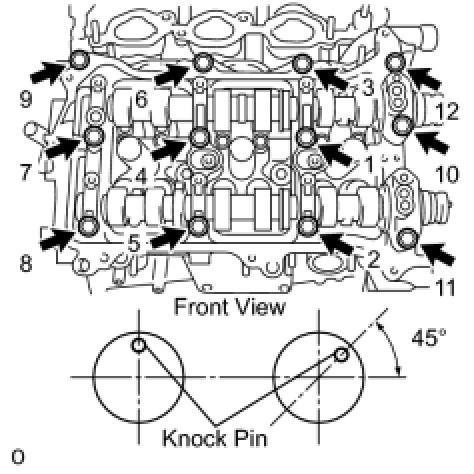

Install the camshaft housing sub-assembly LH and tighten the 13 bolts in the order shown in the illustration.

Torque 28 Nm (286 kgf-cm, 21 ft-lbf)

Tighten the 8 bolts in the order shown in the illustration.

Torque 16 Nm (163 kgf-cm, 12 ft-lbf)

CAMSHAFT HOUSING SUB-ASSEMBLY RH

Install the camshaft housing sub-assembly RH and tighten the 12 bolts in the order shown in the illustration.

Torque 28 Nm (286 kgf-cm, 21 ft-lbf)

Tighten the 8 bolts in the order shown in the illustration.

Torque 16 Nm (163 kgf-cm, 12 ft-lbf)
