Programming and Relearning





WIPER AND WASHER: WIPER AND WASHER SYSTEM: CUSTOMIZE PARAMETERS

HINT

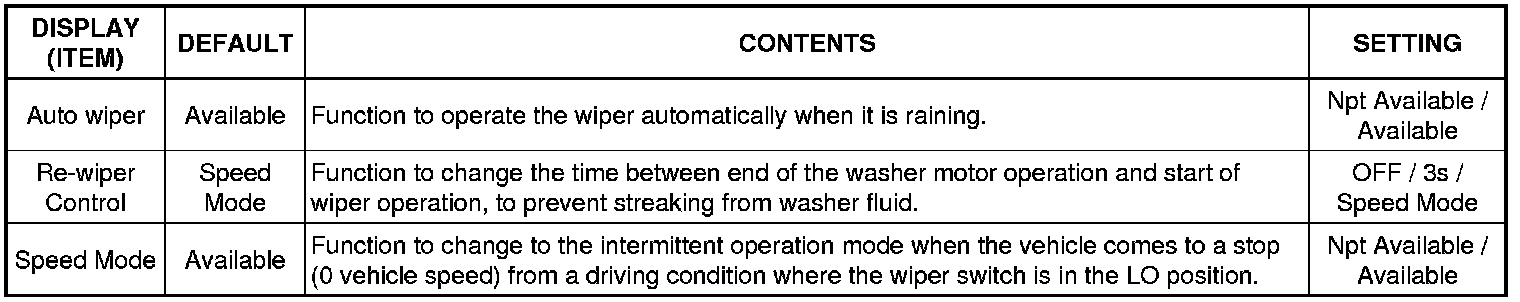

The following items can be customized.

NOTICE:
* After confirming whether the items of the customer's request can be customized or not, perform the customize operation.
* Be sure to record the current settings before customizing.
* In case of troubleshooting, pay attention as there is a possibility that the function is set to OFF by customizing. (Example: In case of the symptom in which the wireless operation does not function, check that the wireless operation is not set to OFF by customizing, then perform the troubleshooting.)

Wiper
