P311 HYBRID VEHICLE CONTROL: SUB RADIATOR: REMOVAL 1.
DRAIN COOLANT (for Inverter)
Service and Repair 2.
REMOVE AIR CLEANER INLET ASSEMBLY
Removal 3.
REMOVE FRONT BUMPER ASSEMBLY
Removal 4.
REMOVE FRONT BUMPER ENERGY ABSORBER
Disassembly 5.
REMOVE RADIATOR SUPPORT UPPER
Removal 6.
REMOVE RADIATOR ASSEMBLY
(a)

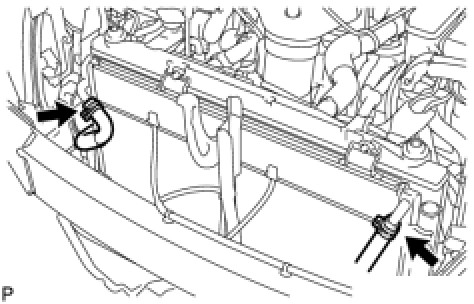

Remove the 2 clips and disconnect the 2 water hoses.
(b)
Remove the 6 bolts and radiator assembly.
