Installation

2AZ-FXE ENGINE CONTROL SYSTEM: CRANKSHAFT POSITION SENSOR: INSTALLATION

1. INSTALL CRANKSHAFT POSITION SENSOR

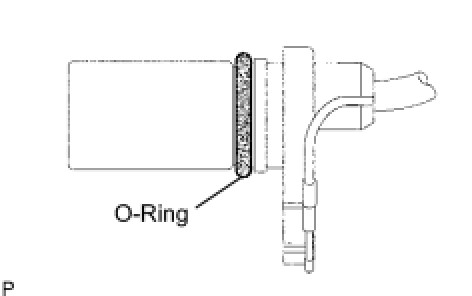

(a) Apply a light coat of engine oil to the O-ring on the crankshaft position sensor.





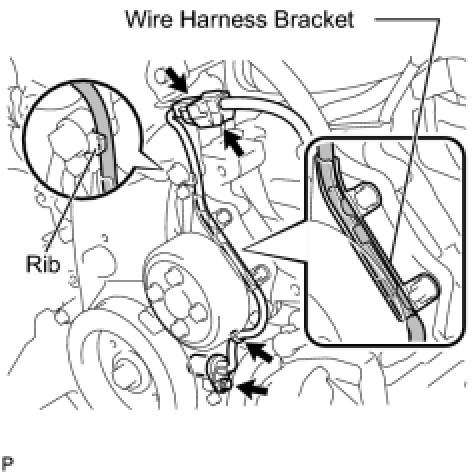

(b) Install the crankshaft position sensor with the bolt.





Torque : 9.0 Nm (92 kgf-cm, 80 in-lbf)

(c) Connect the crankshaft position sensor connector.

2. INSTALL ELECTRIC INVERTER COMPRESSOR Installation

3. CONNECT NO. 1 COOLER REFRIGERANT DISCHARGE HOSE Installation

4. CONNECT NO. 1 COOLER REFRIGERANT SUCTION HOSE Installation

5. CONNECT RADIATOR HOSE OUTLET Installation

6. INSTALL V-RIBBED BELT TENSIONER ASSEMBLY Installation

7. INSTALL V-RIBBED BELT Installation

8. INSTALL V-RIBBED BELT TENSIONER COVER SUB-ASSEMBLY Installation

9. INSTALL SERVICE PLUG GRIP Installation

10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

11. ADD ENGINE COOLANT (for Engine) Coolant (for Engine)

12. INSPECT FOR COOLANT LEAK (for Engine) Testing and Inspection

13. CHARGE WITH REFRIGERANT Service and Repair

14. WARM UP COMPRESSOR Service and Repair

15. INSPECT FOR REFRIGERANT LEAK Service and Repair

16. PERFORM INITIALIZATION

(a) Perform initialization procedure Repair Instruction - Initialization.

NOTICE:
Some vehicle systems require initialization after reconnecting the cable to the negative battery terminal.
