Removal





2AZ-FXE ENGINE CONTROL SYSTEM: CRANKSHAFT POSITION SENSOR: REMOVAL

1. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM Service and Repair

2. DRAIN COOLANT (for Engine) Coolant (for Engine)

3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

4. REMOVE SERVICE PLUG GRIP Removal

5. REMOVE NO. 2 ENGINE ROOM SIDE LH COVER

6. REMOVE CONNECTOR COVER ASSEMBLY

7. CHECK TERMINAL VOLTAGE

8. INSTALL CONNECTOR COVER ASSEMBLY

9. INSTALL NO. 2 ENGINE ROOM SIDE LH COVER

10. REMOVE V-RIBBED BELT TENSIONER COVER SUB-ASSEMBLY Removal

11. REMOVE V-RIBBED BELT Removal

12. REMOVE V-RIBBED BELT TENSIONER ASSEMBLY Removal

13. DISCONNECT RADIATOR HOSE OUTLET Removal

14. DISCONNECT NO. 1 COOLER REFRIGERANT SUCTION HOSE Removal

15. DISCONNECT NO. 1 COOLER REFRIGERANT DISCHARGE HOSE Removal

16. REMOVE ELECTRIC INVERTER COMPRESSOR Removal

17. REMOVE CRANKSHAFT POSITION SENSOR

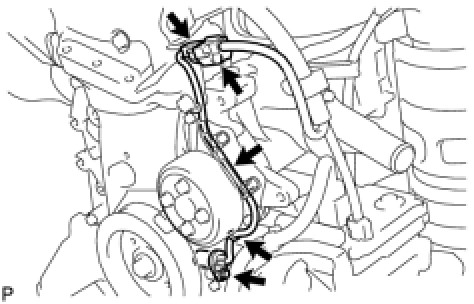

(a) Disconnect the crankshaft position sensor connector.





(b) Remove the connector clamp and wire harness clamp.

(c) Remove the wire harness clamp bracket from the wire harness.

(d) Remove the bolt, and then remove the crankshaft position sensor.
