Removal





2AZ-FXE ENGINE CONTROL SYSTEM: ENGINE COOLANT TEMPERATURE SENSOR: REMOVAL

1. DRAIN COOLANT (for Engine) Coolant (for Engine)

2. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY Removal

3. REMOVE AIR CLEANER INLET ASSEMBLY Removal

4. REMOVE AIR CLEANER CAP SUB-ASSEMBLY Removal

5. REMOVE AIR CLEANER CASE SUB-ASSEMBLY Removal

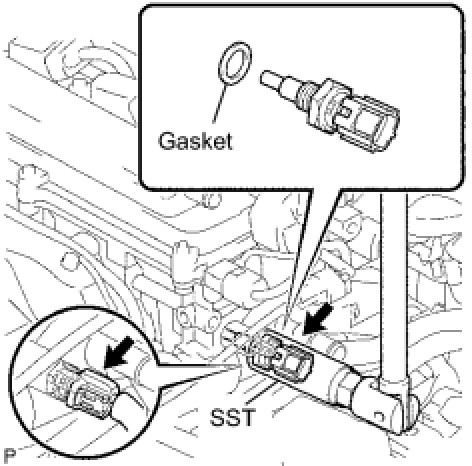

6. REMOVE ENGINE COOLANT TEMPERATURE SENSOR

(a) Disconnect the engine coolant temperature sensor connector.





(b) Using SST, remove the engine coolant temperature sensor and gasket.

SST : 09817-33190
