Installation





2AZ-FXE ENGINE CONTROL SYSTEM: CAMSHAFT OIL CONTROL VALVE: INSTALLATION

1. INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY

(a) Apply a light coat of engine oil to an O-ring of the camshaft timing oil control valve assembly sensor.

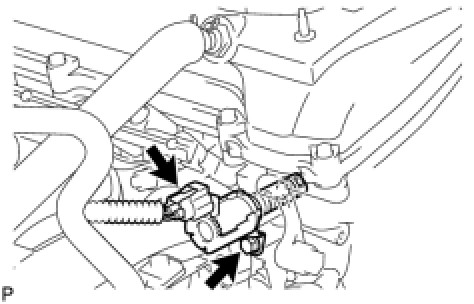

(b) Install the camshaft timing oil control valve assembly with the bolt.





Torque : 9.0 Nm (92 kgf-cm, 80 in-lbf)

(c) Connect the camshaft timing oil control valve assembly connector.

2. INSTALL BRAKE MASTER CYLINDER RESERVOIR SUB-ASSEMBLY

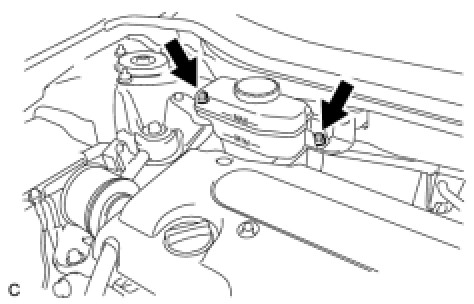

(a) Install the brake master cylinder reservoir sub-assembly with the 2 bolts.





Torque : 8.0 Nm (82 kgf-cm, 71 in-lbf)

3. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY Installation
