Installation

ENGINE IMMOBILISER: CERTIFICATION ECU (w/ Smart Key System): INSTALLATION

1. INSTALL CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

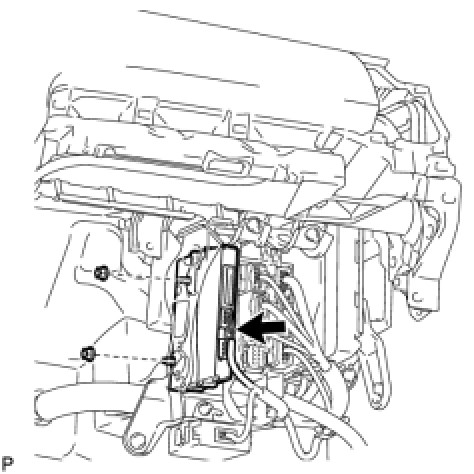

(a) Install the certification ECU (smart key ECU assembly) with the 2 nuts.





(b) Connect the connector.

2. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY Installation

3. INSTALL INSTRUMENT PANEL NO. 2 UNDER COVER SUB-ASSEMBLY Installation

4. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH

HINT
Use the same procedure for the RH side and the LH side Installation.

5. INSTALL FRONT DOOR SCUFF PLATE RH

HINT
Use the same procedure for the RH side and the LH side Installation.

6. REGISTER ECU COMMUNICATION ID

NOTICE:
When replacing the certification ECU (smart key ECU assembly), perform initialization Engine Immobiliser System (W/ Smart Key System).

7. REGISTER KEY

NOTICE:
When replacing the certification ECU (smart key ECU assembly), perform initialization Engine Immobiliser System (W/ Smart Key System).
