Removal
DOOR LOCK: DOOR CONTROL TRANSMITTER (w/o Smart Key System): REMOVAL
1. REMOVE TRANSMITTER BATTERY
(a) Remove the transmitter battery.

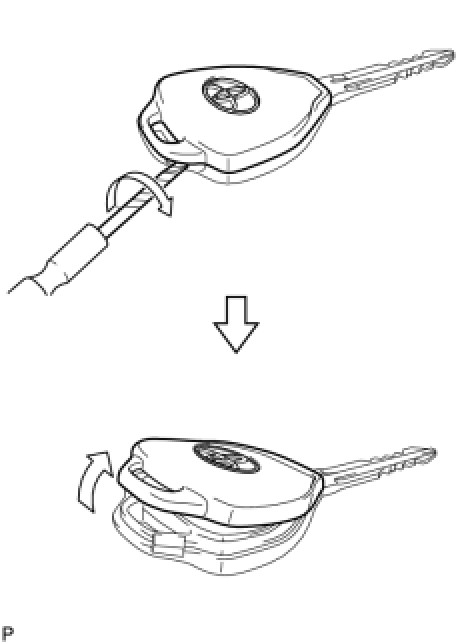

(1) Using a screwdriver with its tip wrapped in protective tape, pry open the transmitter housing cover.
NOTICE:
Do not use excessive force when prying open the housing cover.
(b) Remove the door control transmitter module from the transmitter housing case.
(c) Using a coin, or other flat object, pry open the transmitter cover.

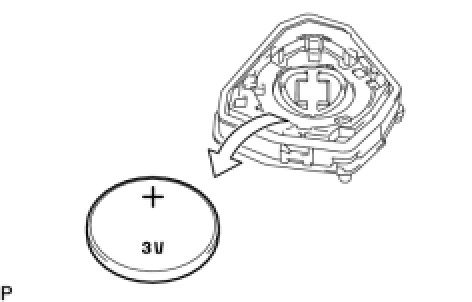

(d) Remove the transmitter battery (lithium battery).
NOTICE:
* Do not push the terminals with your finger.
* Do not forcibly pry up the battery (lithium battery) because doing so will deform the terminals.
* Do not touch the battery with wet hands. Water may result in corrosion.
* Do not touch or move any components inside the transmitter because handling the components may interfere with proper operation of the transmitter.
