Installation





CRUISE CONTROL: CLUTCH SWITCH: INSTALLATION

1. INSTALL CLUTCH SWITCH ASSEMBLY

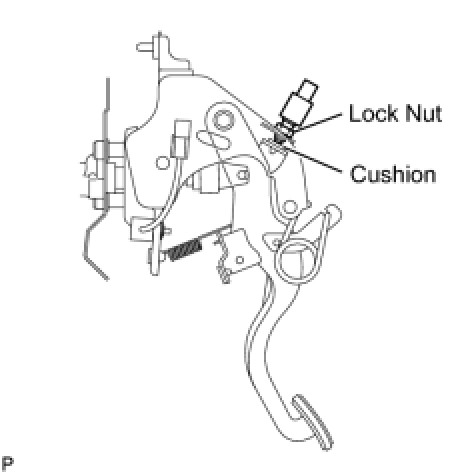

(a) Completely loosen the lock nut of the clutch switch assembly.

(b) Adjust the clutch switch until the threaded portion makes gentle contact with the cushion. Tighten the lock nut and verify the contact of the switch threaded portion with the cushion.





Torque : 15.7 Nm (160 kgf-cm, 12 ft-lbf)

(c) Connect the connector.

2. INSTALL MAIN BODY ECU (COWL SIDE JUNCTION BLOCK LH)

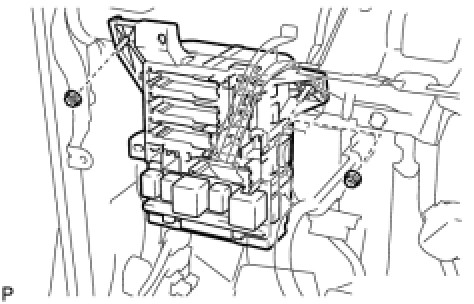

(a) Install the main body ECU (cowl side junction block LH) with the 2 nuts.





Torque : 8.0 Nm (82 kgf-cm, 71 in-lbf)

(b) Connect all connectors.

3. INSTALL INSTRUMENT PANEL FINISH LOWER PANEL LH (for TMC Made) Installation

4. INSTALL INSTRUMENT PANEL FINISH PANEL LOWER LH (for TMMK Made) Installation

5. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH Installation

6. INSTALL FRONT DOOR SCUFF PLATE LH Installation
