Reassembly

AIR CONDITIONING: AIR CONDITIONING PANEL: REASSEMBLY

1. INSTALL CONTROL KNOB SUB-ASSEMBLY (for Automatic Air Conditioning System)

NOTICE:
When disassembling the air conditioning control assembly, eliminate static electricity by touching the vehicle body to prevent the components from being damaged.

(a) Driver Side:

(1) Engage the dual push switch with dial on the heater control base sub-assembly.

(2) Engage the 3 claws.

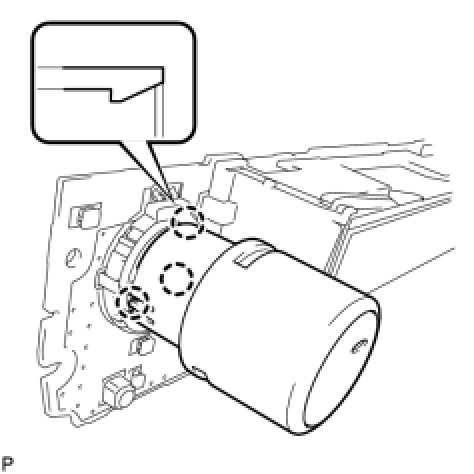

(3) Engage the 3 claws and install the control knob sub-assembly.





(b) Passenger Side:

(1) Engage the 3 claws and install the control knob sub-assembly.





(c) Install the heater control base sub-assembly with the 5 screws.





(d) Engage the 4 claws and install the control panel case.





2. INSTALL AIR CONDITIONING PANEL SUB-ASSEMBLY (for Automatic Air Conditioning System)

(a) Engage the 4 claws and install the ornament.





(b) Engage the 4 claws.





(c) Install the air conditioning panel sub-assembly with the 5 screws.
