Initialization

METER: METER / GAUGE SYSTEM: INITIALIZATION

1. OIL MAINTENANCE INFORMATION MODE RESET OPERATION

HINT
* The trip meter reset knob is located on the right side of the combination meter assembly.
* This reset operation is required only for U.S.A.

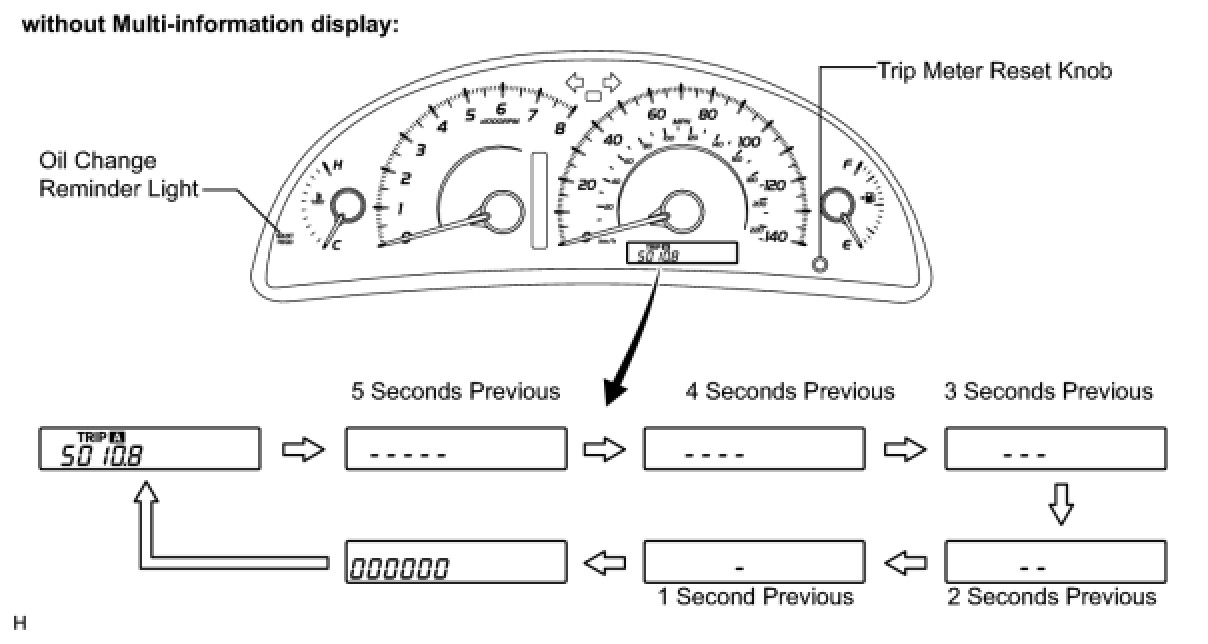

(a) without multi-information display:

(1) Turn the ignition switch on (IG).

(2) Press the ODO/TRIP switch until the trip meter A appears.

(3) Ignition switch off.

(4) Turn the ignition switch on (IG).

(5) Turn the ignition switch on (IG) while pressing and holding the trip meter reset knob. Hold the trip meter reset knob until the following conditions are met and 5 seconds have passed.





* When oil change reminder light turns off, the reset is complete.

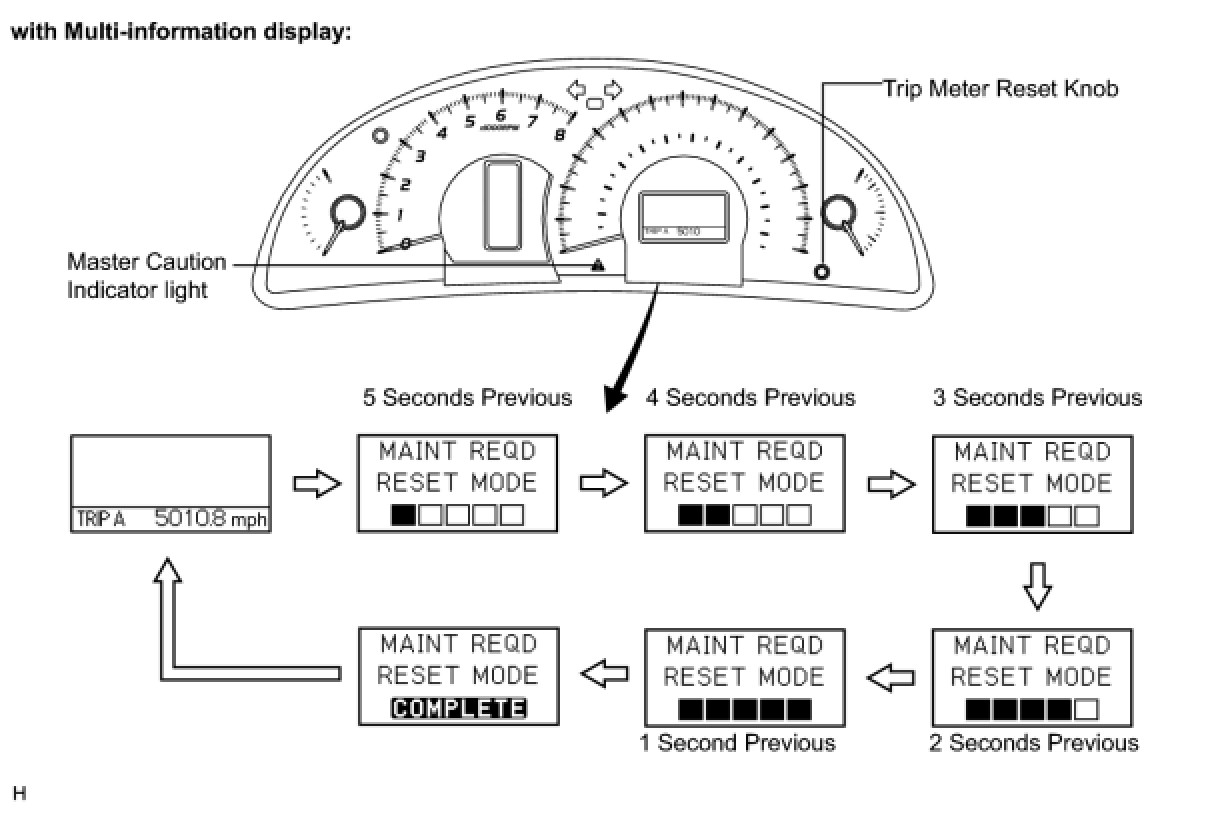

(b) with multi-information display:

(1) Turn the ignition switch on (IG).

(2) Press the ODO/TRIP switch until the trip meter A appears.

(3) Ignition switch off.

(4) Turn the ignition switch on (IG).

(5) Turn the ignition switch on (IG) while pressing and holding the trip meter reset knob. Hold the trip meter reset knob until the following conditions are met and 5 seconds have passed.





* The multi-information display shows "MAINT REQD RESET MODE".

* The master caution indicator light illuminates.

* When oil change reminder light turns off, the reset is complete.

(6) When "MAINT REQD RESET MODE COMPLETE" disappears and the master caution indicator light turns off, the reset is complete.
