Installation





TIRE AND WHEEL: TIRE PRESSURE WARNING ECU: INSTALLATION

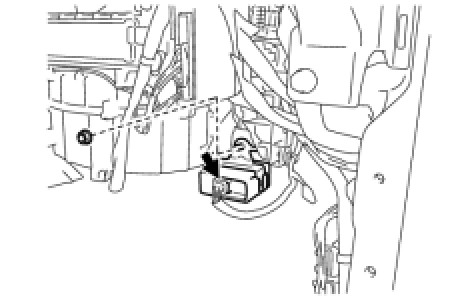

1. INSTALL TIRE PRESSURE WARNING ECU

(a) Connect the connector to the tire pressure warning ECU.





(b) Install the tire pressure warning ECU with the nut.

Torque : 7.5 Nm (77 kgf-cm, 66 in-lbf)

2. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY (for TMC Made) Installation

3. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY (for TMMK Made) Installation

4. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation

5. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH Installation

6. INSTALL FRONT DOOR SCUFF PLATE RH Installation

7. CONNECT CABLE TO BATTERY NEGATIVE TERMINAL

8. REGISTER TRANSMITTER ID

HINT
Registration

9. INITIALIZE SYSTEM

NOTICE:
* Be sure to register the transmitter IDs of all tires including the grand spare tire in the ECU before initialization.
* Be sure to inflate all tires including the grand spare tire to the proper inflation pressure before initialization.

HINT
Initialization

10. INSPECT TIRE PRESSURE WARNING SYSTEM

HINT
Test Mode Procedure
