Installation





OTHER SYSTEM: POWER OUTLET SOCKET: INSTALLATION

1. INSTALL REAR POWER OUTLET SOCKET ASSEMBLY (for Automatic Transaxle)

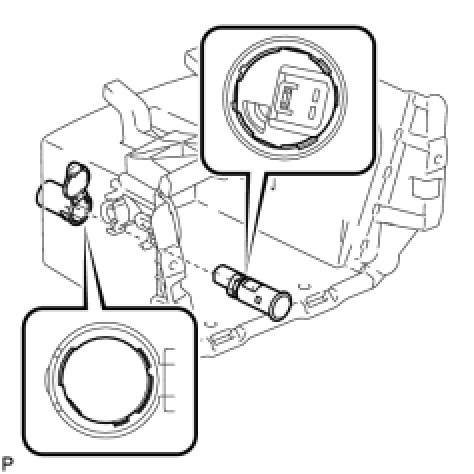

(a) Referring to the shape of the parts, align the rear power outlet socket assembly with the rear power outlet socket cover and install the rear power outlet socket assembly.





2. INSTALL FRONT POWER OUTLET SOCKET ASSEMBLY

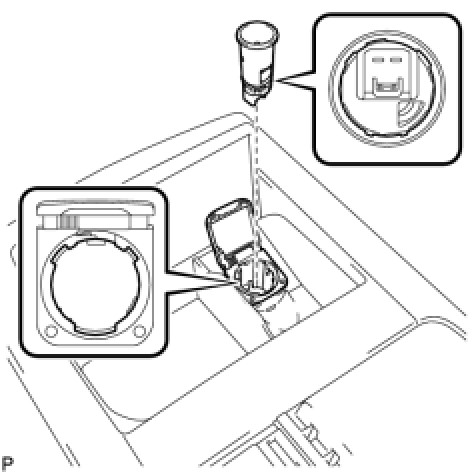

(a) Referring to the shape of the parts, align the front power outlet socket assembly with the front power outlet socket cover and install the front power outlet socket assembly.





3. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY (for TMC Made) Installation

4. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY (for TMMK Made) Installation

5. INSTALL UPPER CONSOLE REAR PANEL SUB-ASSEMBLY (for Automatic Transaxle) Installation

6. INSTALL UPPER CONSOLE REAR PANEL SUB-ASSEMBLY (for Manual Transaxle) Installation

7. INSTALL UPPER CONSOLE PANEL (for Manual Transaxle) Installation

8. INSTALL FLOOR SHIFT POSITION INDICATOR HOUSING SUB-ASSEMBLY (for Automatic Transaxle) Installation

9. INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH Installation

10. INSTALL NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH Installation

11. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle) Installation

12. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle) Installation
