Ignition Relay (w/ Smart Key System)
2AR-FE STARTING: IGNITION RELAY (w/ Smart Key System): ON-VEHICLE INSPECTION 1.

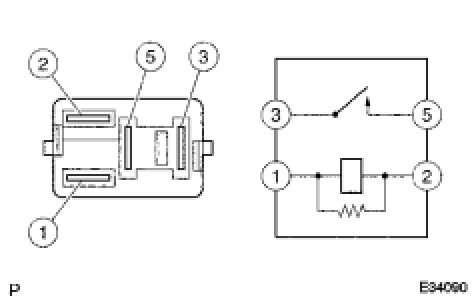

INSPECT NO. 2
IGNITION RELAY (a)
Using an ohmmeter, measure the resistance between each terminal.

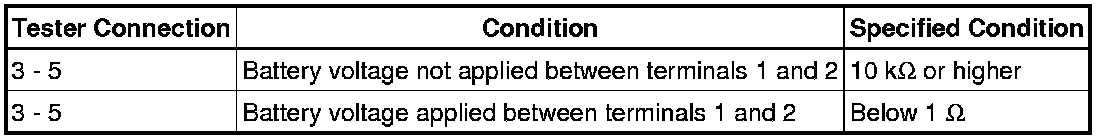

Standard Resistance: If the result is not as specified, replace the No. 2
ignition relay.
