Removal
2GR-FE EMISSION CONTROL: HEATED OXYGEN SENSOR: REMOVAL 1.
REMOVE ENGINE UNDER COVER LH
2.
REMOVE ENGINE UNDER COVER RH
3.
REMOVE FRONT EXHAUST PIPE ASSEMBLY
Removal 4.

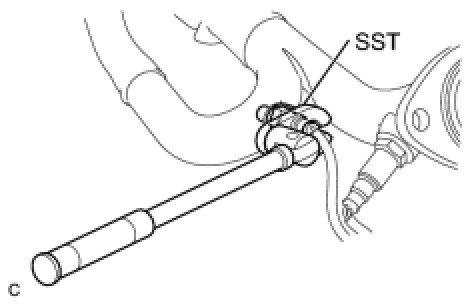

REMOVE HEATED OXYGEN SENSOR (for Bank 1)
(a)
Using SST, remove the
oxygen sensor.
SST : 09224-00010 5.

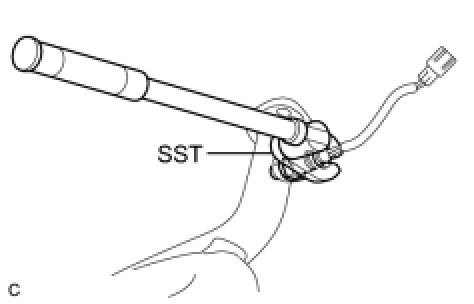

REMOVE HEATED OXYGEN SENSOR (for Bank 2)
(a)
Using SST, remove the
oxygen sensor.
SST : 09224-00010
