Computers and Control Systems: Service Precautions





2GR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: PRECAUTION

NOTICE:
* Perform the RESET MEMORY (AT) initialization operation after replacing the automatic transmission assembly, engine assembly or ECM Initialization.
* Perform REGISTRATION (VIN registration) when replacing the ECM Programming and Relearning.

1. EXPRESSION OF IGNITION SWITCH

HINT
The type of ignition switch used on this model differs according to the specifications of the vehicle.

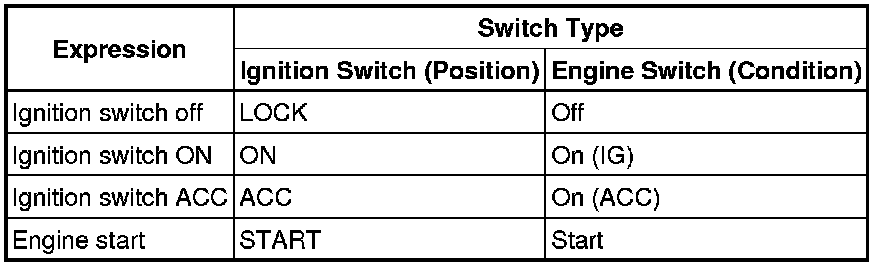

The expressions listed in the table below are used in this section.
