Intake Manifold
Intake ManifoldLowerInstall and tighten the 6 bolts and 4 nuts uniformly in several steps.
Torque
21 Nm (214 kgf-cm, 15 ft-lbf)

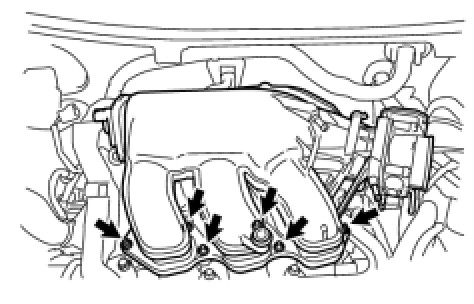

UpperInstall the 4 bolts and 2 nuts
Bolt Torque
18 Nm (184 kgf-cm, 13 ft-lbf)
Nut Torque
16 Nm (163 kgf-cm, 12 ft-lbf)
