Inspection
2ZR-FE ENGINE CONTROL: MASS AIR FLOW METER: INSPECTION 1.
INSPECT MASS AIR FLOW METER
(a)

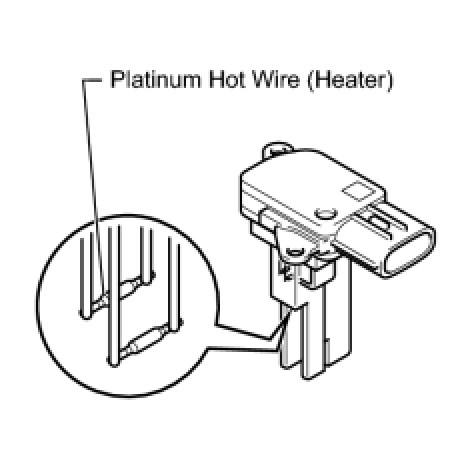

Perform a visual check for any foreign matter on the platinum hot wire (heater) of the mass air flow meter shown in the illustration.
Result: No foreign matter attached. If the result is not as specified, replace the mass air flow meter.
(b)

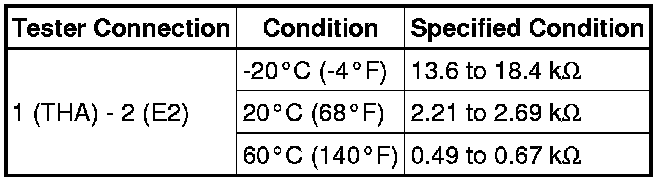

Measure the resistance according to the value(s) in the table below.
Standard Resistance:
