Installation





MIRROR: INNER REAR VIEW MIRROR: INSTALLATION

1. INSTALL INNER REAR VIEW MIRROR ASSEMBLY (w/ EC Mirror)

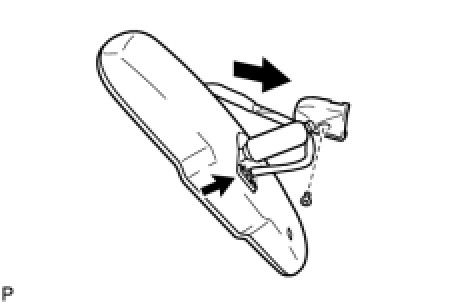

(a) Using a "TORX" socket wrench (T20), install the inner rear view mirror with the screw.





Torque : 3.5 Nm (36 kgf-cm, 31 in-lbf)

2. INSTALL INNER REAR VIEW MIRROR STAY HOLDER COVER (w/ EC Mirror)

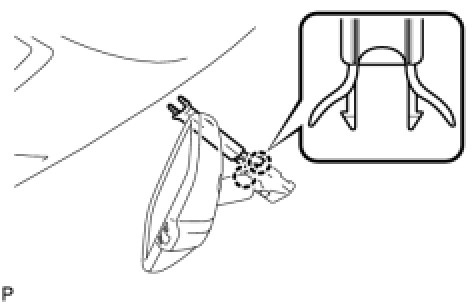

(a) Engage the 2 claws and install the inner rear view mirror stay holder cover.

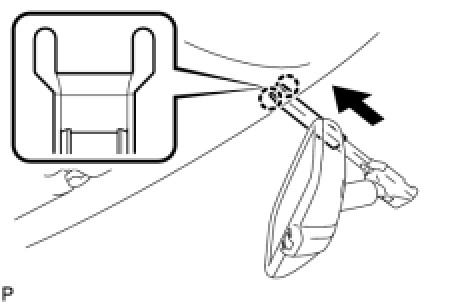

(b) Engage the 2 claws and install the inner rear view mirror stay holder cover as shown in the illustration.





3. INSTALL INNER REAR VIEW MIRROR ASSEMBLY (w/o EC Mirror)

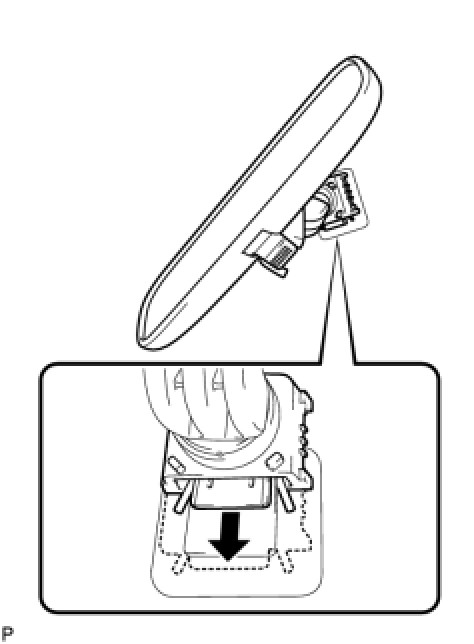

(a) Slide the inner rear view mirror assembly in the direction indicated by the arrow shown in the illustration to install it.

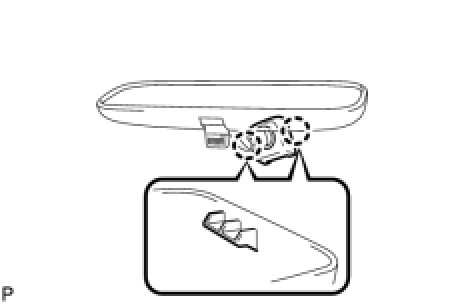

(b) Engage the 2 claws and install the cover.
