Brake Rotor/Disc: Specifications

DISC THICKNESS

FRONT BRAKE

Standard thickness 28.0 mm (1.102 in.)

Minimum thickness 25.0 mm (0.983 in.)


REAR BRAKE

Standard thickness 10.0 mm (0.390 in.)

Minimum thickness 8.5 mm (0.334 in.)


DISC RUNOUT

FRONT BRAKE

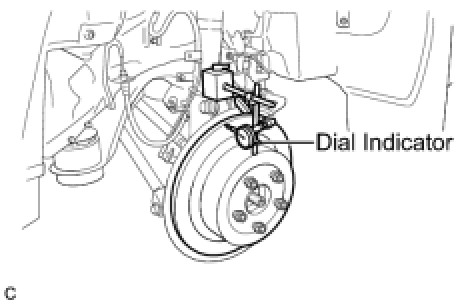

Using a dial indicator, measure the disc runout 10 mm (0.394 in.) away from the outer edge of the front disc.






Maximum disc runout 0.05 mm (0.0020 in.)


REAR BRAKE

Using a dial indicator, measure the disc runout 10 mm (0.394 in.) away from the outer edge of the rear disc.






Maximum disc runout 0.15 mm (0.0059 in.)
