Installation





TIRE AND WHEEL: TIRE PRESSURE WARNING ECU: INSTALLATION

1. INSTALL TIRE PRESSURE WARNING ECU

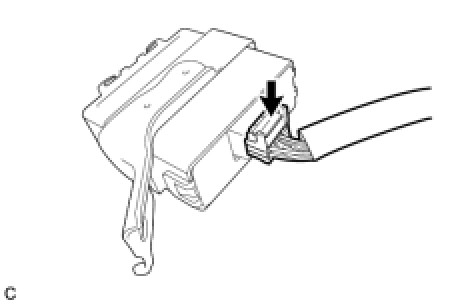

(a) Connect the connector to the tire pressure warning ECU.

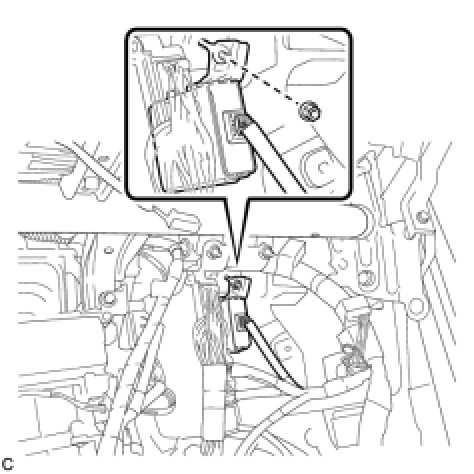

(b) Install the tire pressure warning ECU with the nut.





Torque : 8.5 Nm (87 kgf-cm, 75 in-lbf)

2. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY Installation

3. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation

4. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH Installation

5. INSTALL FRONT DOOR SCUFF PLATE RH Installation

6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

7. REGISTER TRANSMITTER ID

HINT
Registration.

8. INSPECT TIRE PRESSURE WARNING SYSTEM

HINT
Test Mode Procedure.

9. INITIALIZE SYSTEM

NOTICE:
* Be sure to register the transmitter IDs of all tires in the ECU before initialization.
* Be sure to inflate all tires to the proper inflation pressure before initialization.

HINT
Initialization.
