Installation





1AR-FE ENGINE CONTROL SYSTEM: ENGINE COOLANT TEMPERATURE SENSOR: INSTALLATION

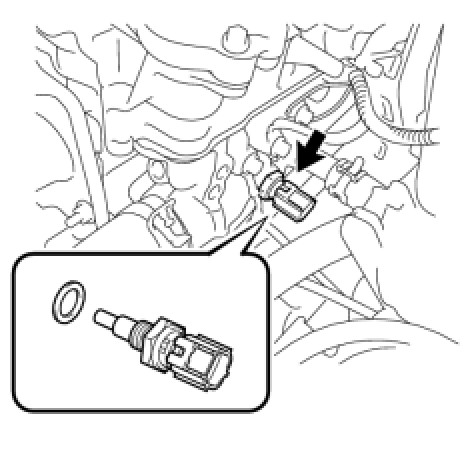

1. INSTALL ENGINE COOLANT TEMPERATURE SENSOR

(a) Install a new gasket to the sensor.





(b) Install the engine coolant temperature sensor.

Torque : 20 Nm (204 kgf-cm, 15 ft-lbf)

(c) Connect the engine coolant temperature sensor connector.





2. INSTALL AIR CLEANER CASE Installation

3. INSTALL AIR CLEANER CAP SUB-ASSEMBLY Installation

4. INSTALL NO. 1 VACUUM SWITCHING VALVE Installation

5. ADD ENGINE COOLANT Service and Repair

6. INSPECT FOR COOLANT LEAK Testing and Inspection

7. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY Installation

8. INSTALL OUTER COWL TOP PANEL SUB-ASSEMBLY Installation

9. INSTALL WINDSHIELD WIPER MOTOR AND LINK

HINT
See the steps from "Install Windshield Wiper Motor and Link Assembly" through "Install front wiper arm and blade assembly LH" Installation.

10. INSTALL NO. 1 ENGINE UNDER COVER
