Installation





WIPER AND WASHER: WASHER LEVEL WARNING SWITCH: INSTALLATION

1. INSTALL LEVEL WARNING SWITCH ASSEMBLY

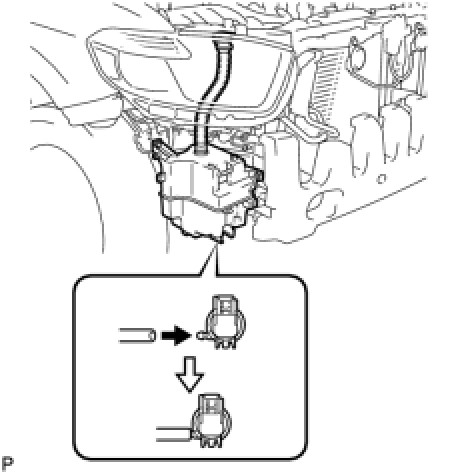

(a) Install the level warning switch assembly.

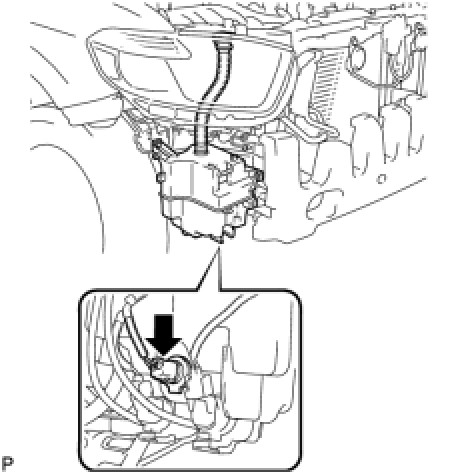

(b) Connect the connector.

2. FILL WASHER JAR WITH WASHER FLUID

(a) Connect the washer hose to the front washer motor and pump assembly and fill the washer jar with washer fluid.





3. INSTALL FRONT FENDER LINER RH Installation

4. INSTALL FRONT FENDER MOULDING SUB-ASSEMBLY RH Installation

5. INSTALL FRONT BUMPER ASSEMBLY Installation

6. INSTALL RADIATOR GRILLE Installation

7. INSTALL COOL AIR INTAKE DUCT SEAL Installation

8. INSTALL NO. 1 ENGINE UNDER COVER

9. INSTALL ENGINE UNDER COVER ASSEMBLY (for 2GR-FE) Installation

10. VEHICLE PREPARATION FOR FOG LIGHT AIMING ADJUSTMENT (w/ Fog Light) Adjustments

11. PREPARATION FOR FOG LIGHT AIMING (w/ Fog Light) Adjustments

12. INSPECT FOG LIGHT AIMING (w/ Fog Light) Adjustments

13. ADJUST FOG LIGHT AIMING (w/ Fog Light) Adjustments
