Installation

THEFT DETERRENT / KEYLESS ENTRY: CERTIFICATION ECU: INSTALLATION

1. INSTALL CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) (w/ Pre-collision System)

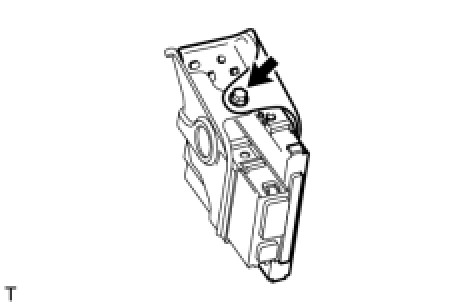

(a) Install the ECU with the bolt.





Torque : 5.5 Nm (56 kgf-cm, 49 in-lbf)

(b) Install the certification ECU (smart key ECU assembly) with seat belt control ECU with the 2 nuts.

Torque : 5.5 Nm (56 kgf-cm, 49 in-lbf)





(c) Connect the connectors.

2. INSTALL CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) (w/o Pre-collision System)

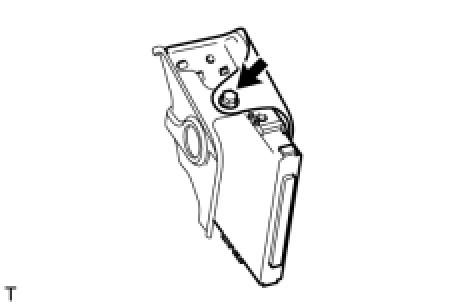

(a) Install the ECU with the bolt.





Torque : 5.5 Nm (56 kgf-cm, 49 in-lbf)

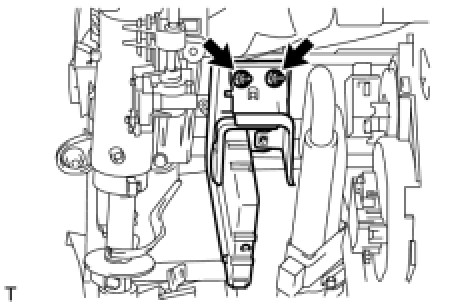

(b) Install the certification ECU (smart key ECU assembly) with bracket with the 2 nuts.

Torque : 5.5 Nm (56 kgf-cm, 49 in-lbf)





(c) Connect the connectors.

3. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY Installation

4. INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL Installation

5. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation

6. INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH Installation

7. INSTALL NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH Installation

8. INSTALL INSTRUMENT SIDE PANEL LH Installation

9. INSTALL LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY LH Installation

10. INSTALL NO. 2 INSTRUMENT PANEL FINISH PANEL CUSHION Installation

11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

12. REGISTER ECU CODE

(a) Register the ECU code Engine Immobiliser System.

13. CHECK SRS WARNING LIGHT

(a) Check the SRS warning light Diagnosis System.
