Procedures

SEAT: REAR NO. 2 SEAT ASSEMBLY: DISPOSAL

HINT
* Use the same procedures for the LH side and RH side
* The procedures listed below are for the LH side.

1. DISPOSE OF NO. 2 SEAT STAY SUB-ASSEMBLY

(a) Horizontally fix the seat stay in a vise with the piston-rod pulled out.

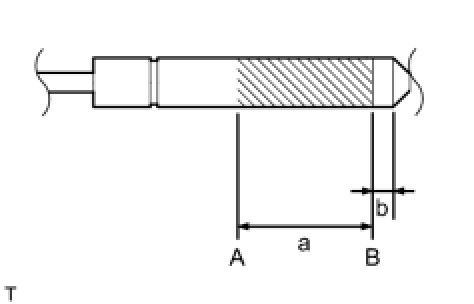

(b) Wear safety glasses. Gradually cut a part between A and B shown in the illustration using a metal saw and gradually release the gas.

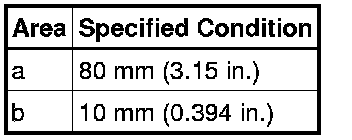

Standard:

CAUTION:
As metal debris may be blown outward by the gas, you must:

* Wear protective glasses.
* Cover the area being cut.
NOTICE:
The gas inside the seat stay is colorless, odorless and harmless. There is a possibility that metal debris could scatter, so cover the part with a piece of cloth or other material.
