Installation

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: CRAWL SWITCH: INSTALLATION

1. INSTALL CRAWL SWITCH

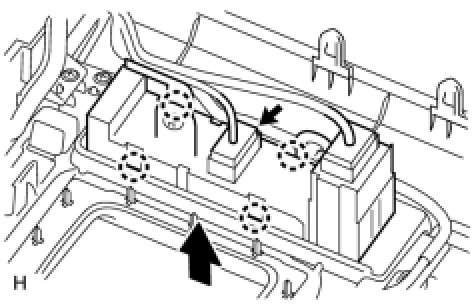

(a) Attach the 4 claws to install the suspension control switch (CRAWL switch).





(b) Connect the connector.

2. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY Installation

3. INSTALL CONSOLE CUP HOLDER BOX SUB-ASSEMBLY Installation

4. INSTALL REAR UPPER CONSOLE PANEL SUB-ASSEMBLY Installation

5. INSTALL LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY Installation

6. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY Installation

7. INSTALL LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY RH Installation

8. INSTALL NO. 1 INSTRUMENT PANEL FINISH CUSHION Installation

9. INSTALL LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY LH Installation

10. INSTALL NO. 2 INSTRUMENT PANEL FINISH PANEL CUSHION Installation

11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
