Initialization





METER / GAUGE / DISPLAY: METER / GAUGE SYSTEM: INITIALIZATION

1. OIL MAINTENANCE INFORMATION MODE RESET OPERATION

NOTICE:
* When "Oil Maintenance Reqd" or "Oil Maintenance Reqd Soon" is displayed, change the engine oil and perform this procedure.
* After the engine oil is changed, perform this procedure so that "Oil Maintenance Reqd" or "Oil Maintenance Reqd Soon" does not display.

HINT
* The oil change maintenance system displays "Oil Maintenance Reqd" or "Oil Maintenance Reqd Soon" in the multi-information display to inform the driver that it is time to change the oil based on the distance driven.

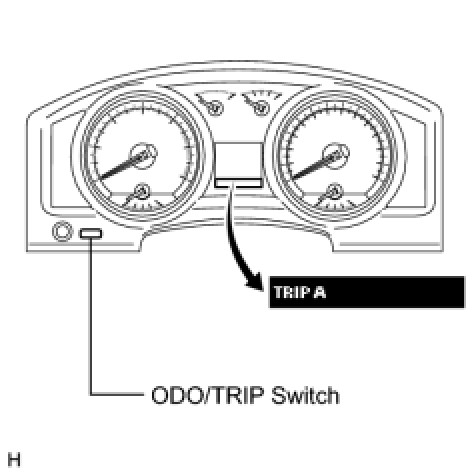

* The ODO/TRIP switch is in the light control rheostat.

(a) Turn the engine switch on (IG), and use the ODO/TRIP switch to change the screen display to TRIP A.





(b) Turn the engine switch off.

(c) While holding in the ODO/TRIP switch, turn the engine switch on (IG).

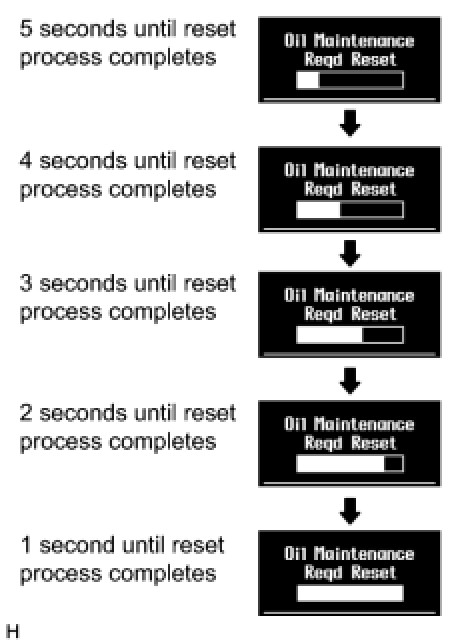

(d) After a 5 second count, reset will end.





NOTICE:
* If the engine switch is turned off during the reset operation, reset mode will be canceled.
* If the ODO/TRIP switch is released during the reset operation, reset mode will be canceled.

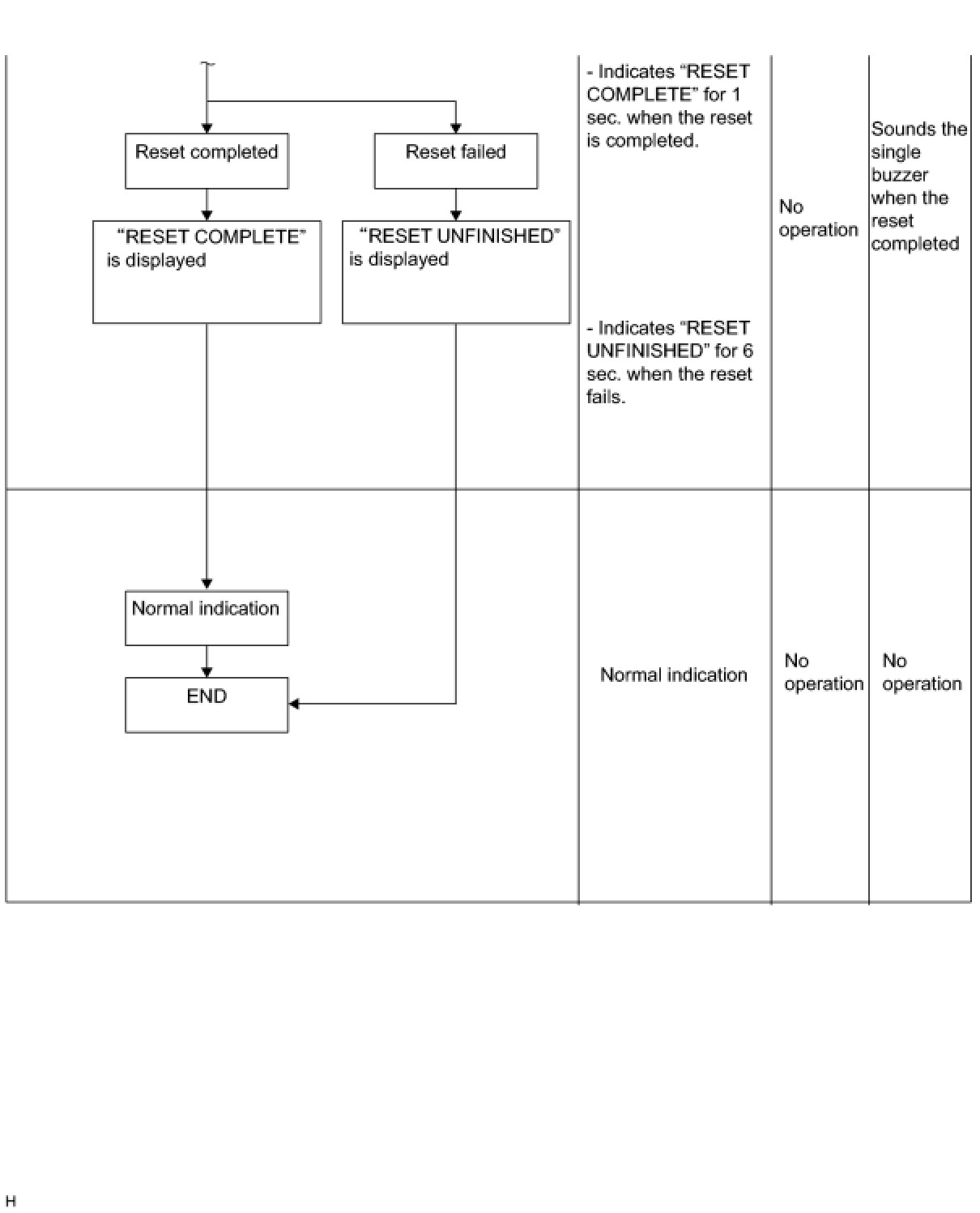

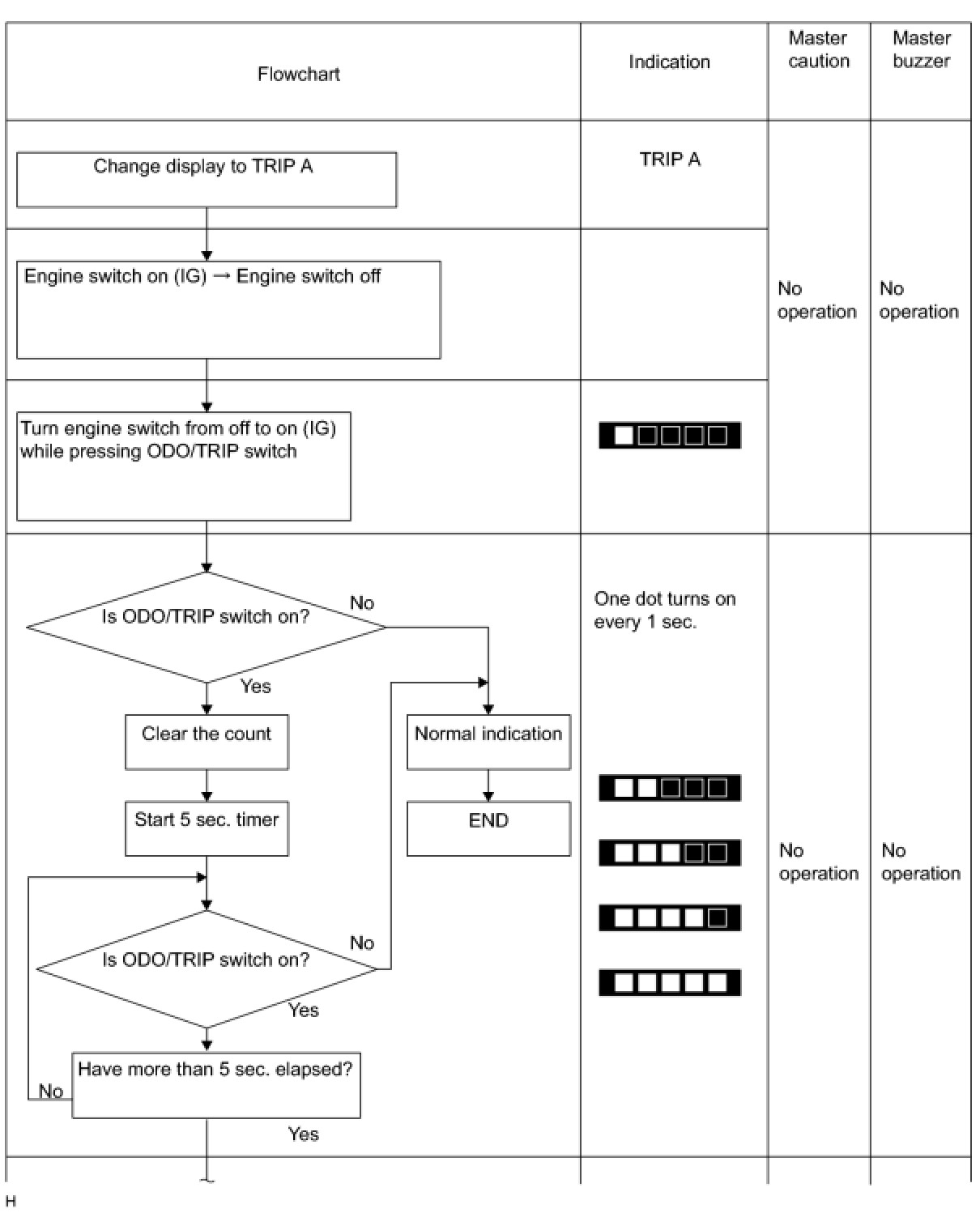

(1) RESET FLOWCHART
