Removal
3UR-FE ENGINE CONTROL: AIR FUEL RATIO SENSOR: REMOVAL
CAUTION:
* Wear protective gloves when removing the exhaust pipe.
* The exhaust pipe is extremely hot immediately after the engine has stopped.
* Confirm that the exhaust pipe has cooled down before removing it.
1. REMOVE NO. 2 ENGINE UNDER COVER Removal
2. REMOVE TAILPIPE ASSEMBLY Removal
3. REMOVE CENTER EXHAUST PIPE ASSEMBLY Removal
4. REMOVE FRONT NO. 2 EXHAUST PIPE ASSEMBLY Removal
5. REMOVE FRONT EXHAUST PIPE ASSEMBLY Removal
6. REMOVE AIR FUEL RATIO SENSOR (for Bank 1 Sensor 1)

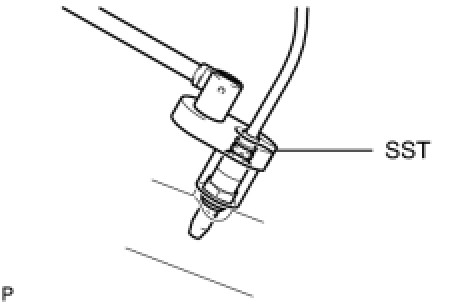

(a) Using SST, remove the sensor.
SST : 09224-00010
7. REMOVE AIR FUEL RATIO SENSOR (for Bank 2 Sensor 1)
(a) Using SST, remove the sensor.
SST : 09224-00010
