Installation
PARK ASSIST / MONITORING: CLEARANCE WARNING ECU: INSTALLATION 1.
INSTALL CLEARANCE WARNING ECU
(a)

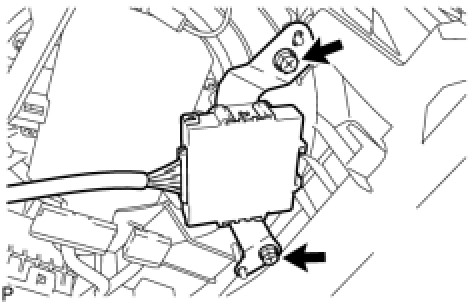

Install the clearance warning ECU to the blower unit with the 2 screws.
NOTICE: * Avoid any impact to the clearance warning ECU. * Do not drop the ECU. If it is dropped, replace it with a new one. (b)
Connect the connector.
2.
INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Installation
