Service Data
SPECIFICATIONS: ALIGNMENT / HANDLING DIAGNOSIS: SERVICE DATA
Standard Vehicle Height (Unloaded Vehicle)

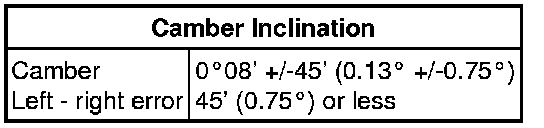

Standard Camber Inclination (Unloaded Vehicle)

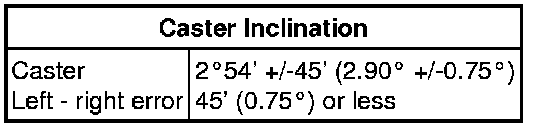

Standard Caster Inclination (Unloaded Vehicle)
Standard Steering Axis Inclination (Unloaded Vehicle)
Standard Toe-in (Unloaded Vehicle)

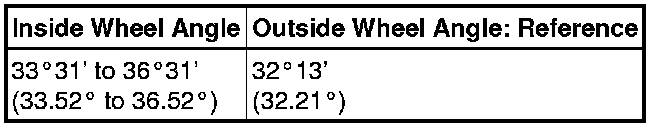

Standard Wheel Turning Angle (Unloaded Vehicle)

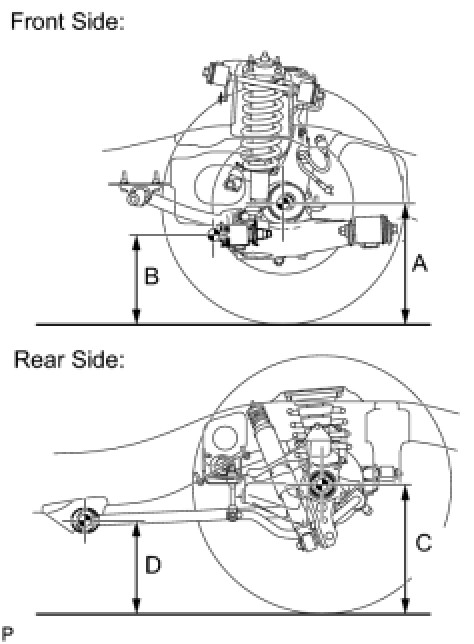

MEASURE VEHICLE HEIGHT
Measuring points:
A : Ground clearance of the front drive shaft center
B : Ground clearance of the front adjusting cam bolt center
C : Ground clearance of the rear axle shaft center
D : Ground clearance of the rear lower control arm front side center
