System Specifications

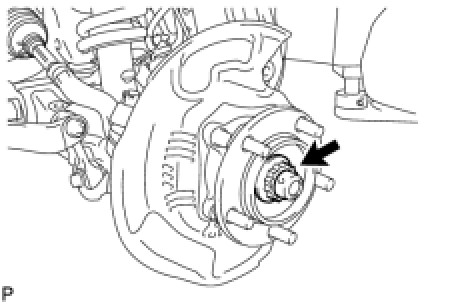

FRONT AXLE SHAFT NUT LHUsing a 39 mm socket wrench, install the axle shaft nut.
Torque
200 Nm (2039 kgf-cm, 148 ft-lbf)
Using a 39 mm socket wrench, loosen the axle shaft nut.
Using a 39 mm socket wrench, retighten the axle shaft nut.
Torque
340 Nm (3467 kgf-cm, 251 ft-lbf)
Install the front wheel adjusting lock cap and a new cotter pin.
