Removal
3UR-FE STARTING: ENGINE SWITCH: REMOVAL 1.
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2.
REMOVE NO. 2 INSTRUMENT PANEL FINISH PANEL CUSHION
Removal 3.
REMOVE LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY LH
Removal 4.
REMOVE ENGINE SWITCH
(a)
Disconnect the switch connector.
(b)

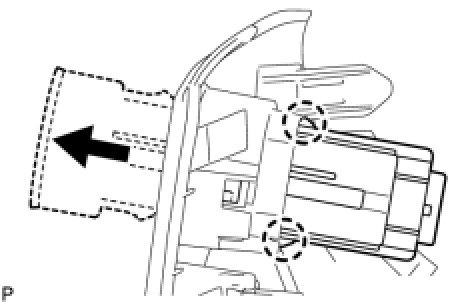

Detach the 2 claws and remove the switch.
