Reassembly

LIGHTING (EXT): REAR COMBINATION LIGHT ASSEMBLY: REASSEMBLY

1. INSTALL REAR COMBINATION LIGHT SOCKET AND WIRE

(a) Engage the claw and install the rear combination light socket and wire to the rear combination light lens and body.





2. INSTALL TAIL AND STOP LIGHT BULB

(a) Install the tail and stop light bulb to the rear combination light socket and wire.

(b) Turn the tail and stop light bulb and the rear combination light socket and wire in the direction indicated by the arrow and install them as a unit.





3. INSTALL BACK UP LIGHT BULB

(a) Install the back up light bulb to the rear combination light socket and wire.

(b) Turn the back up light bulb and the rear combination light socket and wire in the direction indicated by the arrow and install them as a unit.





4. INSTALL REAR TURN SIGNAL LIGHT BULB

(a) Install the rear turn signal light bulb to the rear combination light socket and wire.

(b) Turn the rear turn signal light bulb and the rear combination light socket and wire in the direction indicated by the arrow and install them as a unit.





(c) Engage the guide.

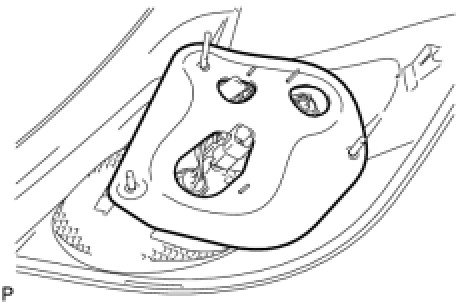

5. INSTALL REAR COMBINATION LIGHT GASKET

(a) Install a new rear combination light gasket.
