Installation

U241E AUTOMATIC TRANSAXLE: SPEED SENSOR: INSTALLATION

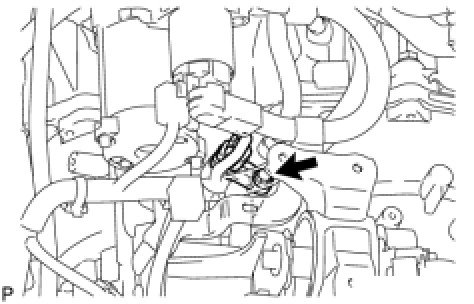

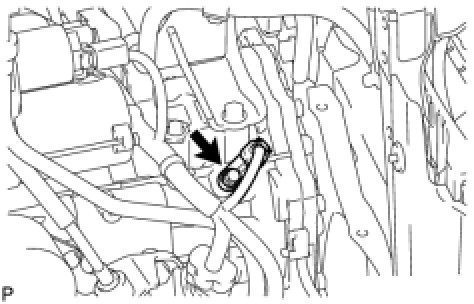

1. INSTALL SPEED SENSOR NC

(a) Coat a new O-ring with ATF.

(b) Install the O-ring to the sensor.

(c) Install the sensor with the bolt.

Torque : 11 Nm (112 kgf-cm, 8 ft-lbf)

(d) Connect the sensor connector.

3. INSTALL BATTERY

(a) Install the battery bracket reinforcement with the 2 bolts.

Torque : 20 Nm (204 kgf-cm, 15 ft-lbf)

(b) Install the battery carrier with the 4 bolts.

Torque : 20 Nm (204 kgf-cm, 15 ft-lbf)

(c) Install the battery tray.

(d) Install the battery with the battery clamp.

Torque : 17 Nm (168 kgf-cm, 21 in-lbf) for bolt

Torque : 4.9 Nm (50 kgf-cm, 43 in-lbf) for nut

4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
