Fluid Pan, A/T


AUTOMATIC TRANSAXLE OIL PAN SUB-ASSEMBLY

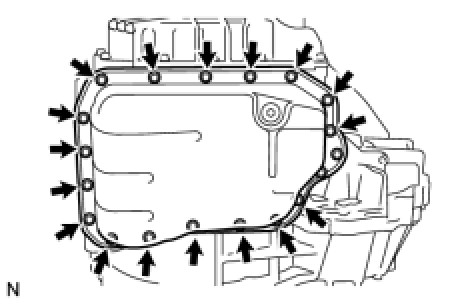

Install the automatic transaxle oil pan with the automatic transaxle oil pan gasket onto the automatic transaxle with the 17 bolts.






Torque 7.5 Nm (76 kgf-cm, 66 in-lbf)

Completely remove any oil or grease from the contact surfaces of the transaxle case and oil pan sub-assembly with the gasket before installation.

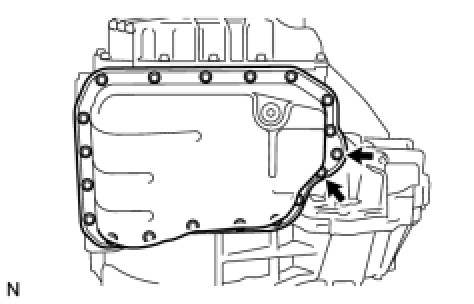

Clean and degrease the 2 bolts and the installation holes in the transaxle case.






Install the 2 bolts.

Torque 7.0 Nm (71 kgf-cm, 62 in-lbf)
