Steering Mounted Controls Transmitter: Testing and Inspection





AUDIO / VIDEO: STEERING PAD SWITCH: INSPECTION

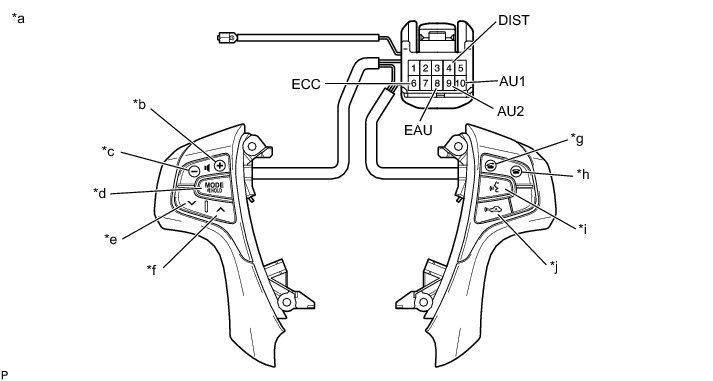

1. INSPECT STEERING PAD SWITCH ASSEMBLY (w/ Dynamic Radar Cruise Control System)

(a) Measure the resistance according to the values in the table below.





Text in Illustration





Standard Resistance:





If the result is not as specified, replace the steering pad switch assembly.

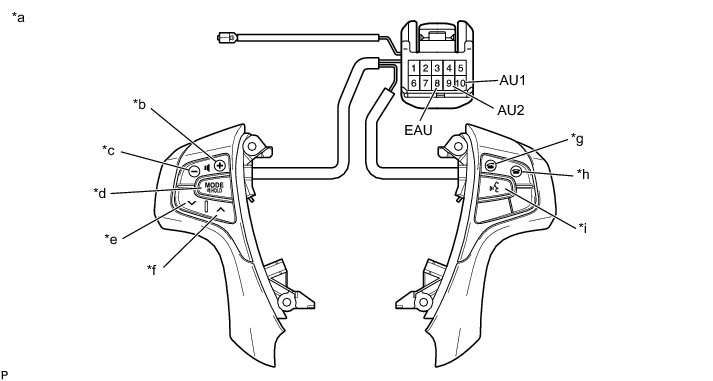

2. INSPECT STEERING PAD SWITCH ASSEMBLY (for Microphone without Dynamic Radar Cruise Control System)

(a) Measure the resistance according to the values in the table below.





Text in Illustration





Standard Resistance:





If the result is not as specified, replace the steering pad switch assembly.

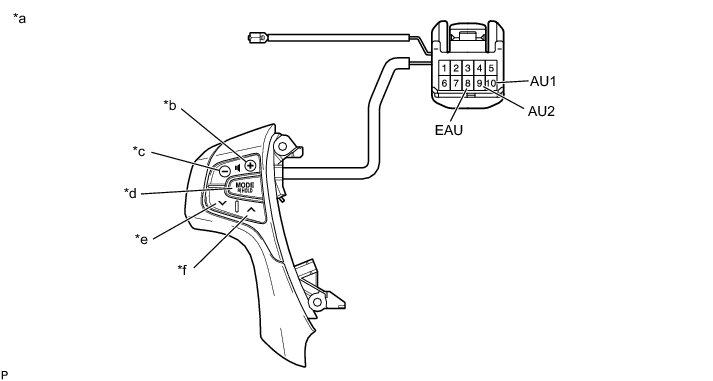

3. INSPECT STEERING PAD SWITCH LH (w/o Microphone)

(a) Measure the resistance according to the values in the table below.





Text in Illustration





Standard Resistance:





If the result is not as specified, replace the steering pad switch LH.
