Ride Height
MEASURE VEHICLE HEIGHTMeasure the vehicle height.

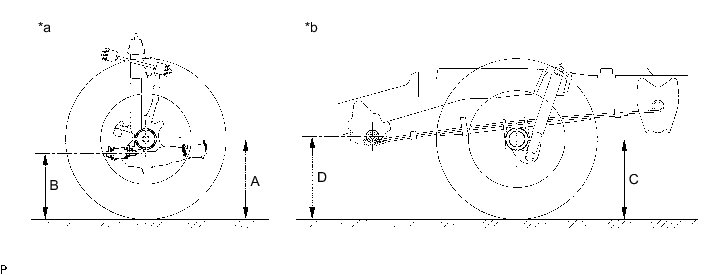

Text in Illustration
Measuring points:A:Ground clearance of front wheel center
B:Ground clearance of adjustment cam bolt center (front side)
C:Ground clearance of rear wheel center
D:Ground clearance of rear leaf spring front side bush center

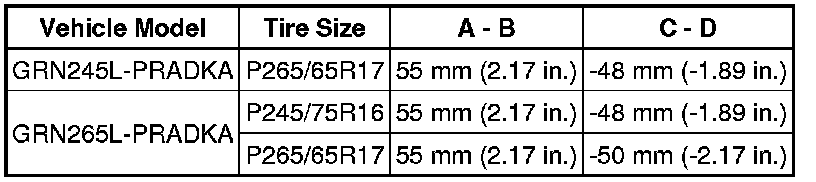

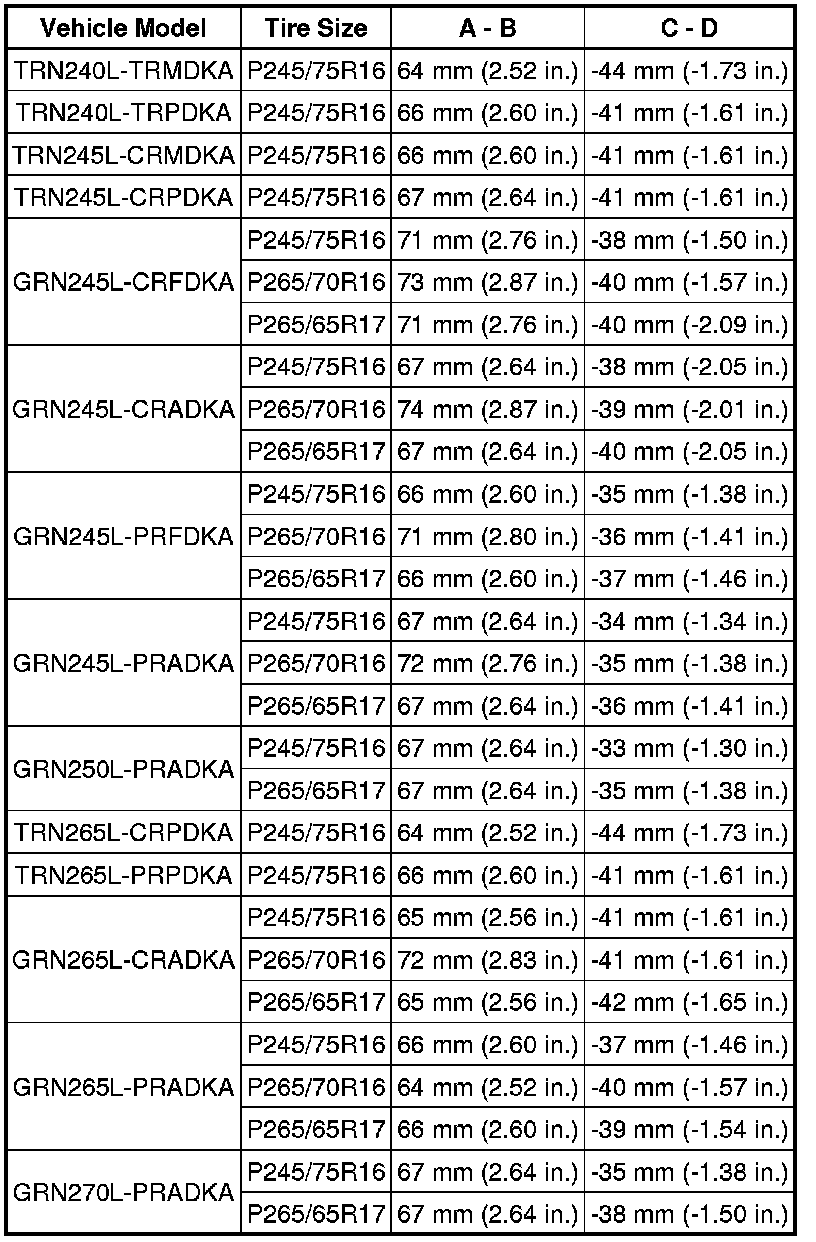

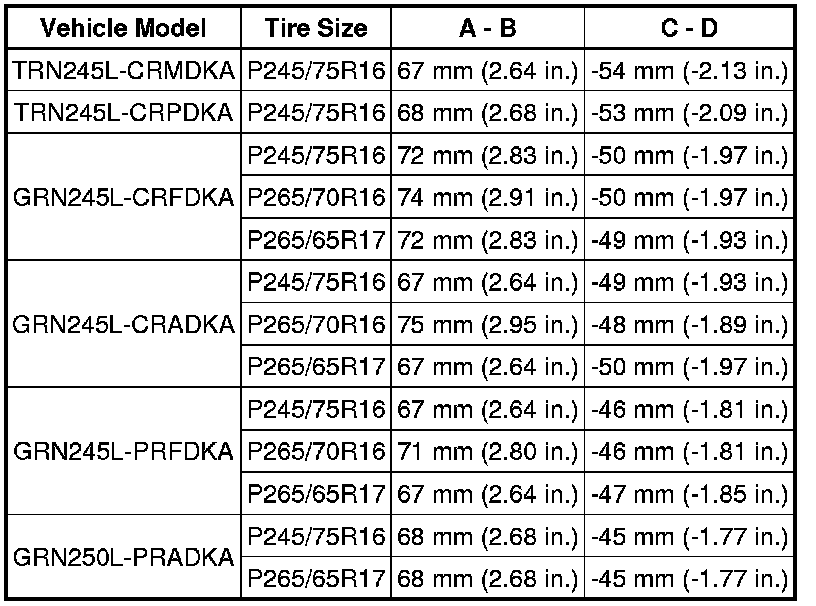

Vehicle Height (Unloaded Vehicle) for USA/3 Leaf Spring:for Mexico/4 Leaf Spring:for Canada/4 Leaf Spring:
