Installation
AIR CONDITIONING: PRESSURE SWITCH: INSTALLATION
1. INSTALL PRESSURE SWITCH
(a) Sufficiently apply compressor oil to a new O-ring and the fitting surface of the pressure switch.
Compressor oil:
ND-OIL 8 or equivalent
(b) Install the O-ring on the pressure switch.

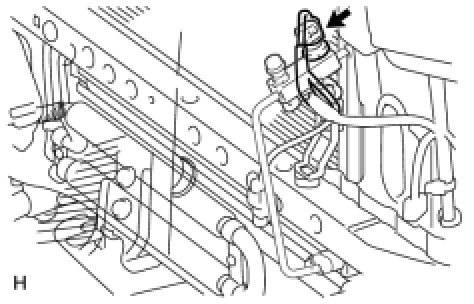

(c) Install the switch.
Torque : 10.8 Nm (110 kgf-cm, 8 ft-lbf)
(d) Connect the connector.
2. CHARGE REFRIGERANT Service and Repair
3. WARM UP ENGINE Service and Repair
4. CHECK FOR LEAKAGE OF REFRIGERANT Service and Repair
