Removal





WINDSHIELD / WINDOW GLASS: REAR POWER WINDOW SWITCH: REMOVAL

HINT
* Use the same procedures for the LH side and RH side.
* The procedures listed below are for the LH side.

1. REMOVE REAR UPPER DOOR ARMREST BASE PANEL LH

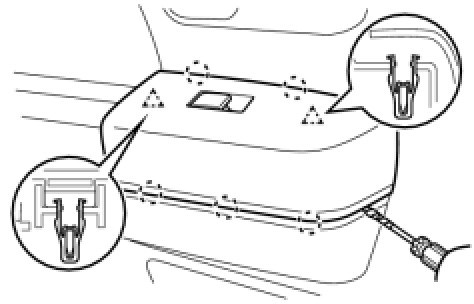

(a) Using a screwdriver, detach the 2 clips and 5 claws, and remove the rear upper door armrest base panel.





HINT
Tape the screwdriver tip before use.

(b) Disconnect the connector.





2. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY

(a) Detach the 2 claws and remove the regulator switch.
