Rear Power Window LH does not Operate with Rear Power Window Switch LH





WINDSHIELD / WINDOW GLASS: POWER WINDOW CONTROL SYSTEM (w/ Jam Protection Function): Rear Power Window LH does not Operate with Rear Power Window Switch LH
- Rear Power Window LH does not Operate with Rear Power Window Switch LH

DESCRIPTION

* If the rear LH side manual UP/DOWN function does not operate, there may be a malfunction in the rear switch LH, the rear motor LH, the master switch, or the harness or connector.

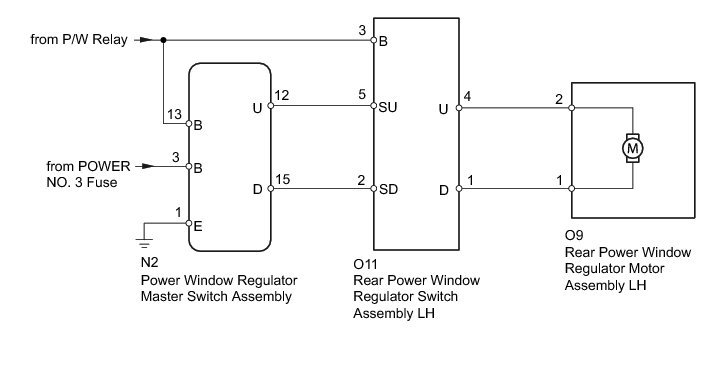

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
Inspect the fuses for circuits related to this system before performing the following inspection procedure.

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (REAR SWITCH LH - BATTERY)

(a) Disconnect the O11 switch connector.





(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

2. INSPECT REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY LH

(a) Remove the rear switch LH Removal.





(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPLACE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY LH Removal
OK -- Continue to next step.

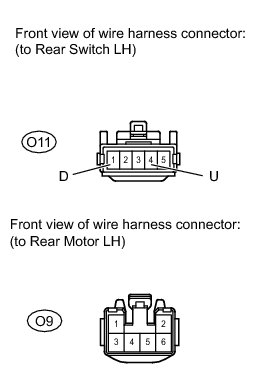

3. CHECK HARNESS AND CONNECTOR (REAR SWITCH LH - REAR MOTOR LH)

(a) Disconnect the O11 switch connector.





(b) Disconnect the O9 motor connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

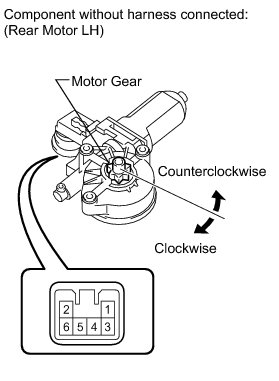

4. INSPECT REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY LH





(a) Remove the rear motor LH Removal.

(b) Apply battery voltage to connector terminals 1 and 2.

(c) Check that the motor gear rotates smoothly as follows.

OK:





NG -- REPLACE REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY LH Removal
OK -- Continue to next step.

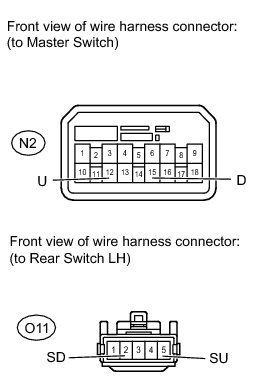

5. CHECK HARNESS AND CONNECTOR (MASTER SWITCH - REAR SWITCH LH)

(a) Disconnect the N2 master switch connector.





(b) Disconnect the O11 switch connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY Removal
