Installation

1UR-FE STARTING: IGNITION SWITCH: INSTALLATION

1. INSTALL IGNITION SWITCH ASSEMBLY

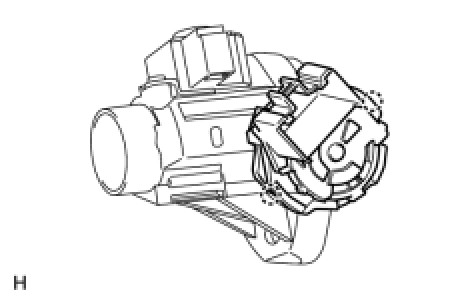

(a) Attach the 2 claws to install the ignition switch to the steering lock.

2. INSTALL UPPER STEERING COLUMN WITH SWITCH BRACKET ASSEMBLY (for Manual Tilt) Reassembly

3. INSTALL UPPER STEERING COLUMN WITH SWITCH BRACKET ASSEMBLY (for Manual Tilt and Manual Telescopic Steering Column) Reassembly

4. INSTALL UPPER STEERING COLUMN WITH SWITCH BRACKET ASSEMBLY (for Power Tilt and Power Telescopic Steering Column) Reassembly

5. INSTALL STEERING COLUMN ASSEMBLY

(a) for Manual Tilt:

Install the steering column Installation.

(b) for Manual Tilt and Manual Telescopic Steering Column:

Install the steering column Installation.

(c) for Power Tilt and Power Telescopic Steering Column:

Install the steering column Installation.

6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
