Installation

TIRE PRESSURE MONITORING: TIRE PRESSURE WARNING ECU: INSTALLATION

1. INSTALL TIRE PRESSURE WARNING ECU

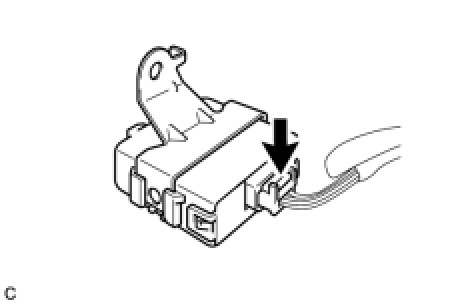

(a) Connect the connector to the tire pressure warning ECU.





(b) Install the tire pressure warning ECU with the nut.





Torque : 8.5 Nm (87 kgf-cm, 75 in-lbf)

HINT

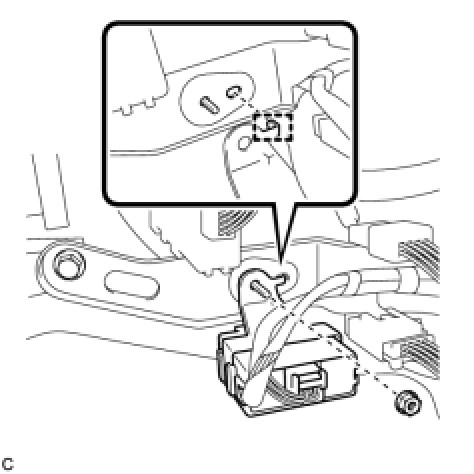

Engage the tab into the hole as shown in the illustration to install the tire pressure warning ECU.

2. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY Installation

3. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation

4. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH Installation

5. INSTALL FRONT DOOR SCUFF PLATE RH Installation

6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

7. REGISTER TRANSMITTER ID

HINT
It is necessary to register all transmitter IDs Programming and Relearning.

8. INSPECT TIRE PRESSURE WARNING SYSTEM

(a) Inspect the tire pressure warning system Test Mode Procedure.
