Installation





SUPPLEMENTAL RESTRAINT SYSTEMS: OCCUPANT CLASSIFICATION ECU: INSTALLATION

1. INSTALL OCCUPANT CLASSIFICATION ECU

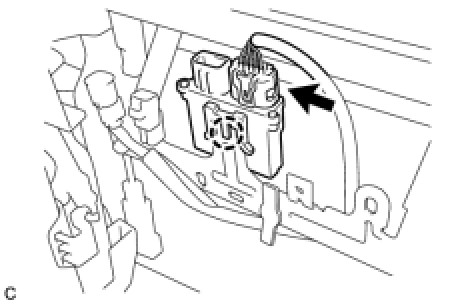

(a) Install the occupant classification ECU with the claw.





NOTICE:
* If the occupant classification ECU has been dropped, or there are any cracks, dents or other defects in the case or connector, replace the occupant classification ECU with a new one.
* When installing the occupant classification ECU, be careful that the SRS wiring does not interfere with or is pinched between other parts.

(b) Connect the connector.

2. INSTALL FRONT SEAT ASSEMBLY RH

HINT
Use the same procedure for the RH side and the LH side.

for Manual Seat: Installation

for Power Seat: Installation

3. PERFORM DIAGNOSTIC SYSTEM CHECK

(a) Perform a diagnostic system check Reading and Clearing Diagnostic Trouble Codes.

4. INSPECT SRS WARNING LIGHT

(a) Inspect the SRS warning light Diagnosis System.
